Comparison of Common Laser Tuning Methods: Current Tuning vs. Piezoelectric Tuning vs. Thermal Tuning
In ultra-narrow linewidth single-frequency laser modules (ULSLMs), wavelength and frequency stability directly determine system performance. In coherent communications, high precision spectroscopy and interferometry, and fiber optic sensing, adjusting the laser frequencies quickly and accurately is essential for the dependability of the systems and experiment results. This article will provide an in-depth comparison of three common tuning methods—current tuning, piezoelectric tuning, and thermal tuning—and explore their application scenarios for ULSLMs to help you make the right technology choice.
Basic Principles of Laser Tuning
The laser frequency or wavelength depends on the gain medium’s refractive index and cavity length. To finesse the tuning, one adjusts the output frequency by either changing the cavity length or the refractive index. In ultra-narrow linewidth single frequency laser modules, where the linewidth can drop to the kHz or even the Hz range, the tuning solution becomes a question of equilibrium between the pinpoint accuracy required for tuning, the stability, and the noise, which causes the narrow linewidth properties to be compromised.
Common tuning methods include:
- Current tuning: Changing the injection current influences the carrier density and refractive index.
- Piezoelectric tuning: Using mechanical deformation of piezoelectric ceramics to change the resonant cavity length.
- Thermal tuning: Changing the refractive index and cavity length by varying the temperature.
Current Tuning
Operating Principle
Current tuning achieves rapid fine-tuning of the output wavelength by varying the injection current into the laser diode, changing the refractive index of the gain medium and the center wavelength of the gain spectrum.
Advantages
Fast response speed, up to MHz levels
Simple drive and low cost
Suitable for high-speed frequency modulation or phase-locked loop feedback
Disadvantages
Limited tuning range (typically < 10 GHz)
Current variations introduce intensity noise and may increase phase noise
Sensitive to temperature drift, requiring temperature control
Application Scenarios
In narrow-linewidth laser modules, current tuning is often used for rapid frequency fine-tuning and closed-loop frequency locking, such as frequency locking in laser cold atom experiments.
Piezo Tuning
Working Principle
Piezo tuning uses piezoelectric ceramics to drive laser cavity mirrors or gratings, fine-tuning the resonant cavity length and achieving frequency shifts.
Advantages
High tuning accuracy and good linearity
No impact on laser gain current and low intensity noise
A wide continuous tuning range (> 1 GHz) is possible
Disadvantages
Moderate response speed (kHz level), slower than current tuning
High cost and requires a dedicated high-voltage driver
Tuning range is limited by the travel of the piezoelectric ceramics
Applications
In ultra-narrow linewidth lasers, piezo tuning is a common solution for frequency scanning, interferometric scanning, and spectral detection. It is particularly suitable for slow but high-precision tuning.

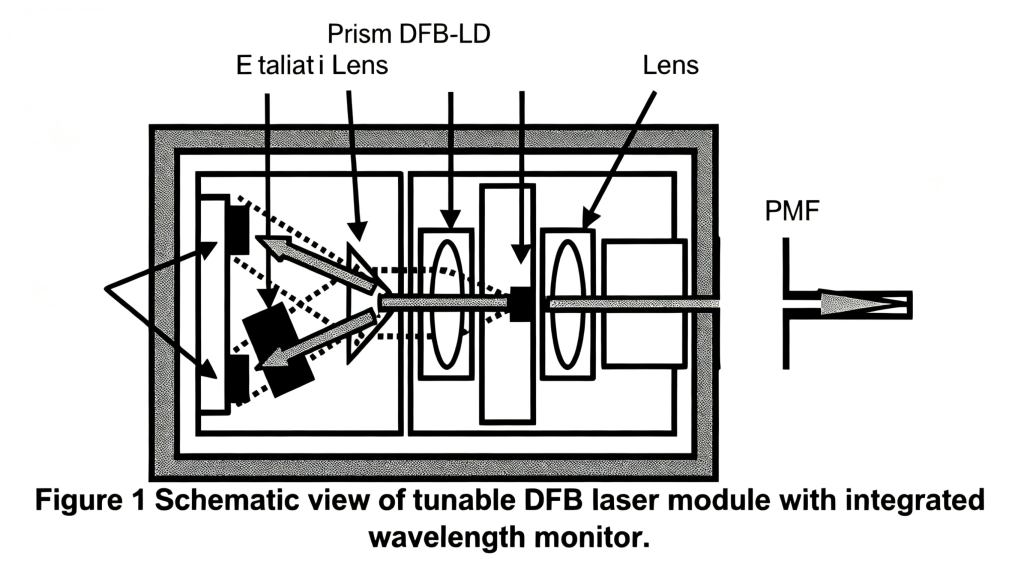

Thermal Tuning
Working Principle
Wavelength variation is achieved by adjusting the laser or external cavity temperature, thereby changing the refractive index and cavity length.
Advantages
Largest tuning range, reaching tens of GHz or even nanometers.
Good stability, suitable for long-term wavelength drift compensation.
Simple implementation and easy integration.
Disadvantages
Slow response speed (ms to seconds).
Possible introduction of thermal noise, affecting short-term phase stability.
High power consumption, requiring good heat dissipation.
Application Scenarios
In ultra-narrow linewidth single-frequency laser modules, thermal tuning is typically used for coarse tuning, combined with piezoelectric and current tuning to achieve full controllability.
Comparison of Three Tuning Methods
| Tuning method | Response speed | Tuning range | Stability | Cost | Typical applications |
| Current tuning | Fast (μs level) | Small (GHz) | Medium | low | High-frequency modulation, fast frequency locking |
| Piezoelectric tuning | Medium (kHz level) | Medium(GHz) | high | Medium to high | Precision scanning, frequency locking, interferometry |
| Thermal tuning | Slow (ms~s) | Large (nm level) | high | In the | Coarse wavelength adjustment and long-term stable compensation |
How to Choose the Right Tuning Solution
High-Speed Frequency Control → Current Tuning
Ideal for wide-bandwidth control that needs quick response, phase modulation, and frequency locking.
High-Precision Frequency Sweep → Piezoelectric Tuning
Ideal for uses like spectral scanning, interferometry tests, and atomic physics research that call for linear, controllable tuning.
Wide-Range Wavelength Matching → Thermal Tuning
Used to determine the initial wavelength, account for drift caused by the environment, and guarantee steady operation over an extended period of time.
In practical applications, a hybrid scheme of thermal tuning + piezoelectric tuning + current tuning is often adopted:
Thermal tuning is used for rough tuning
Medium-speed fine tuning is performed through piezoelectric tuning
Current tuning enables high-speed feedback
This way, it can not only ensure frequency stability but also take into account a wide tuning range and fast response.
Conclusion
For the Ultra-narrow Linewidth Single-Frequency Laser Module, it is crucial to rationally select and combine the tuning methods. Current tuning provides high-speed response, piezoelectric tuning brings high-precision frequency scanning, and thermal tuning ensures a wide range of wavelength compensation. Only by comprehensively utilizing the advantages of the three can the full performance of narrow-linewidth lasers be brought into play, and stable and reliable experimental results be obtained in fields such as coherent communication, quantum optics, and precision measurement.
If you are selecting a system, you can give priority to laser modules that support multiple tuning interfaces. This makes it easier to achieve closed-loop control and long-term stable operation.
