How to Select a Narrow-Linewidth Semiconductor Laser for Your Application
In advanced photonics and precision measurement, lasers are not only defined by power and wavelength but also by the spectral width and linewidth of the emitted light. Almost every field, such as coherent passive optical networks, LiDAR, spectroscopy, and even quantum technology, has come to rely on the invariant narrow linewidth, as well as the immense coherence and spectral purity, produced by the lasers.
With new applications and expanding laser types, choosing narrow linewidth semiconductor lasers becomes difficult. Is it better to choose narrow linewidths with lower output power, or adjustable lasers with lower environmental stability? More importantly, how do you answer the
performance vs. price question for the multiple requirements?
This article is a practical primer on selecting a narrow-linewidth semiconductor laser. We explain why getting it right matters, outline key selection criteria, correlate specifications with common applications, and highlight pitfalls to avoid — so you can make the best choice for your next project.
Why Choosing the Right Narrow-Linewidth Laser Matters
The operation of most modern optical systems depends on the quality of the light source. Narrow-linewidth semiconductor lasers are in great demand because they have high coherence, long coherence length, and very good frequency stability — features that enable applications ranging from coherent communications to high-resolution spectroscopy and quantum sensing. In contrast to the standard semiconductor lasers, which may possess linewidths of several megahertz, narrow-linewidth setups can reduce this figure to a few kilohertz or even less, which greatly improves signal quality and the accuracy of measurements.
Choosing the right laser is not, however, a question of simply selecting the narrowest linewidth available. Different applications require different trade-offs between specifications：
- A quantum optics lab experiment may require a sub-kilohertz linewidth and absolute frequency stability
- A LiDAR system may prioritize tunability and compact form factor integration.
- For telecommunications, the sweet spot is typically in an equilibrium of moderate linewidth with reliability and affordability.
Key Selection Criteria for Narrow-Linewidth Semiconductor Lasers
When buying a narrow-linewidth semiconductor laser, you need to pay attention to many important technical parameters, mostly interrelated. Meeting these criteria guarantees that the laser operates with the desired levels of performance, reliability, and integration for your application.

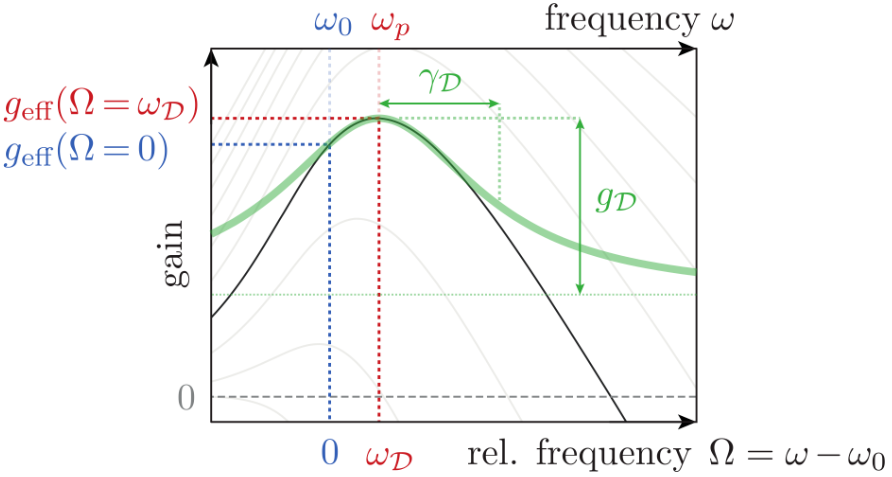

1.Linewidth and Frequency
Narrow linewidths (sub-kHz to tens of kHz) provide longer coherence lengths and lower phase noise which is critical for coherent communications, high-resolution spectroscopy, and quantum sensing. Linewidth defines the spectral purity of the laser. Frequency stability guarantees consistent system performance, especially for precision measurement and interferometry, over time and temperature drifts.
2.Wavelength
Semiconductor lasers are available over a range of wavelengths. These include the 1550 nm for fiber-optic telecom, 1064 nm for metrology and interferometry, and the 780–795 nm used for atomic physics or other associated experiments.
Compatibility of the wavelength with the application’s optical components, detectors, and other components is guaranteed if the appropriate wavelength is selected.
3.Output Power and Optical Efficiency
As much as amplification can improve the signal-to-noise ratio, excessive boosting can lead to an increase in thermal load and signal interference as well.
Integrated systems require an intricate balance where the optical power must be sufficient while the noise output must be as minimal as possible.
4.Tuning Range and Mode-Hop-Free Operation
Certain applications, such as tunable spectroscopy, require extensive mode-hop-free tuning.
In comparison, coherent optical communications may focus on the importance of single-frequency stability and disregard tuneability.
5.Noise Characteristics
The performance of a given system can be completely altered depending on the amount of phase noise and Relative Intensity Noise (RIN) present. Having well-optimized low-noise lasers enables the system to have its signal fidelity and measurement precision greatly enhanced.
6.Packaging and Integration
The outputs can be thermal fiber coupled or free space, both of which can correspond to a distinct system architecture.
For system integration, the thermal management, footprint, and mechanical robustness also must meet the OEM and industrial requirements.
7.Reliability and Lifetime
MTBF (Mean Time Between Failures) and other stability towards environmental stressors are the two primary factors in commercial usage.
For reliable long-term performance, the system must be packaged and have thermal control in place to ensure recalibration and replacement are not a frequent occurrence.
By analyzing these parameters, engineers and researchers can choose the right narrow-linewidth semiconductor laser that balances performance and system integration to reliably support advanced photonics applications.
Matching Narrow-Linewidth Semiconductor Lasers to Applications
As I previously mentioned, the unique advantages of narrow-linewidth semiconductor lasers—e.g., small size, excellent wavelength stability, and direct modulation capability—render them particularly well suited to a range of precision applications. It is a question of selecting the appropriate laser by equating its spectral performance to the system’s physical requirements.
1.Coherent Optical Communications (e.g., 100 kHz – 1 MHz linewidth):
Tunable DBR semiconductor lasers or Distributed Feedback (DFB) lasers offer the optimal trade-off between frequency tunability and narrow linewidth. Low phase noise minimizes high-order modulation formats error rates (e.g., 16-QAM, 64-QAM), and long-distance fiber transmission of high-speed data with less intricate digital signal processing.
2.FMCW LiDAR and Precision Metrology (< 100 kHz linewidth):
Here, ECSLs or high-coherence DFB lasers should be employed. Their ultra-narrow linewidth and low frequency noise are critical in achieving high spatial resolution and long unambiguous range. Fast wavelength sweeping is also feasible on the semiconductor platform—a feature which is required in the operation based on frequency-modulated continuous-wave.
3.Atomic Physics and Cold Atom Experiments (< 1 MHz linewidth):
Semiconductor lasers, particularly ECSLs with grating feedback, provide the sub-MHz linewidth required to address narrow atomic transitions (e.g., rubidium at 780 nm or cesium at 852 nm). Their efficiency and compactness allow simple integration into quantum optical experiments and portable cold-atom setups.
4.Fiber Sensing and Interferometry (~1–50 kHz linewidth):
Stabilized linewidth semiconductor lasers are used in distributed acoustic sensing (DAS) and gyroscopes. They allow for interference over kilometers of fiber because of their long coherence length, and their ruggedness also allows them to be deployed in harsh field environments. Low relative intensity noise (RIN) is also required to maintain the signal-to-noise ratio.
5.Photonic Integration and Silicon Photonics (varies):
Heterogeneously integrated III-V semiconductor lasers on silicon substrates achieve narrow linewidth and scalable integration. They find growing applications in coherent transceivers and quantum photonic circuits, where phase stability and on-chip compatibility are of paramount importance.
By aligning the distinctive strengths of semiconductor laser technology—tunability, integrability, and spectral purity, for instance—with application-specific demands in noise, stability, and scalability, designers can unleash their full potential in emerging photonic systems.
Common Mistakes to Avoid
Selecting a narrow-linewidth semiconductor laser will seem easy, but there are some critical pitfalls that can compromise system performance and incur unnecessary cost.
1. Looking Only at Linewidth: While minimizing linewidth will maximize coherence, it is not necessarily necessary. Over-specifying the linewidth for your application can lead to unnecessary cost without substantial gains in performance.
2. Ignoring Wavelength Compatibility: Choosing a laser without verifying compatibility with detectors, optics, or the system’s operating wavelength can result in signal loss or integration issues.
3. Overlooking Packaging and Integration Requirements: Free-space lasers may perform well in a lab, but fiber-coupled or packaged integrated configurations are often required for industrial or OEM use. Not providing this can result in mechanical instability or thermal issues.
4. Underestimating Noise and Environmental Factors: Phase noise, RIN, temperature oscillations, and vibration can all detract from performance. Careful laser selection and thermal control are needed for faithful operation.
Avoiding these mistakes, scientists and engineers can select a narrow-linewidth semiconductor laser that delivers stable, precise, and affordable performance appropriate for their specific application.
Final
Selecting the right narrow-linewidth semiconductor laser is a crucial choice that has a direct impact on system performance and measurement accuracy. By careful consideration of issues such as linewidth, coherence length, noise characteristics, and wavelength stability in accordance with your application needs, you will be able to avoid costly design compromises.
The best way is to engage a reliable suppliers early in order to convey your specific needs, and to request detailed performance information in regular operating conditions will ensure success. Any interest? Please feel free to contact us at any point.
