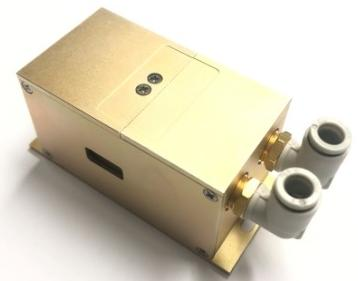

5 Key Specifications to Evaluate When Selecting an Acousto-Optic Q-Switch
When designing and constructing high-repetition-rate, stable pulsed lasers, the choice of Acousto-Optic Q-Switch often dictates system performance. With so many models and parameters to choose from, you are often left bewildered. Being the laser component manufacturer, we feel that moving beyond dense data sheets to understand the engineering implications of a few salient specifications is the discriminator of an informed decision.
This article will skip the abstract theory and dive straight into five crucial specifications of acousto optic q–switch that decide your laser’s performance and stability, giving you a quick checklist for your next purchase.
Why Use Acousto-Optic Q-Switch?
And before we delve into the details, let us take a moment to characterize the inherent value of an Acousto-Optic Q-Switch.
Compared to competing technologies (e.g., electro-optic Q-switching), its principal advantages are that it has high repetition rates (up to hundreds of kHz or even MHz), long lifetime, excellent reliability, and relatively simple drive requirements. It works by placing an RF-driven periodically diffracting grating inside the laser cavity to enable rapid “on” and “off” switching. This accumulates energy and releases it in giant pulses of high-peak power. For high-speed, cw pulse train applications such as industrial processing, LiDAR, medical devices, and scientific instruments, it is a stable and efficient solution.
5 Key Specifications of Acousto-Optic Q-Switch That Matters
Correct acousto-optic Q-switch choice is a mission-critical process in keeping your laser system at its best operating condition. Material choice, electrical requirements, and even minor things such as specifications can contribute to differences in pulse quality, efficiency, and overall reliability in the long run. The following five specifications are regarded as critical in determining an acousto-optic switch.

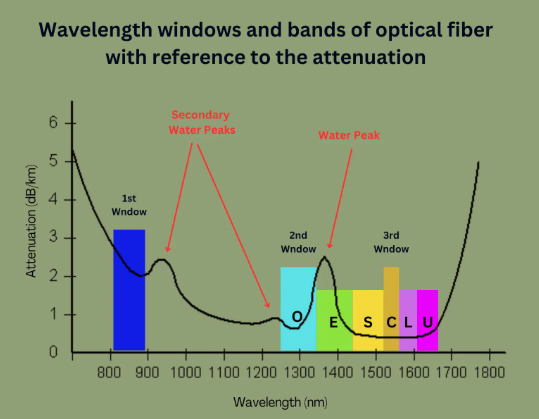

1. Optical Wavelength Compatibility
Wavelength optical compatibility is perhaps the most elementary property to consider in an acousto-optic switch. Different materials for a Q-switch, for example, tellurium dioxide (TeO₂) or fused silica, react in different ways to different laser wavelengths. Using a Q-switch outside its optimal wavelength range could lead to reduced diffraction efficiency, increased insertion loss, or even permanent damage.
For example, switches based on TeO₂are ideally suited for near-infrared laser beams, while quartz or fused silica is superior for visible or ultraviolet light. Verifying wavelength compatibility ensures reliable pulse generation and maximizes overall efficiency in your laser system.
2. Rise and Fall Time Performance
Rise and fall time dictates the rate at which the acousto-optic Q-switch is able to switch the laser between high transmission and low transmission and vice versa. Rise and fall times in the lower range allow for increased control over repetition rate and pulse duration, which is especially essential in cases involving ultrafast pulses or high repetition rates.
A slow-response Q-switch can produce stretched-out pulses, reduced peak power, and limit the accuracy of material processing or scientific experimentations. Understanding how your acousto-optic switch behaves with regard to rise and fall time is essential in order to match your system’s needs for operation.

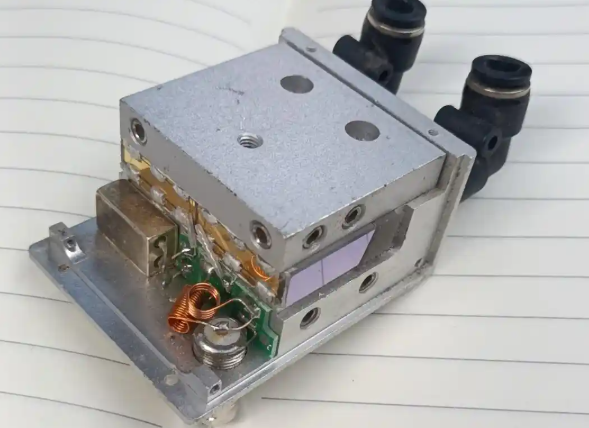

3. Damage Threshold and Power Handling
Every acousto-optic Q-switch has a damage threshold, the maximum power of the laser or energy density it can endure without experiencing thermal or optical damage. This damage would result in downtime and maintenance that is too costly to tolerate.
When selecting a Q-switch, in addition to considering normal operating power, it is also necessary to address possible bursts of peak power. Choosing a switch with a comfortable safety margin enhances device life and allows for reliable operation, particularly in high-power industrial or research laser applications.
4. Efficiency and Diffraction Efficiency Considerations
Diffraction efficiency measures the extent to which the acousto-optic switch effectively modulates the laser beam. Higher diffraction efficiency ensures that more of the input power is utilized in useful output pulses and less is wasted, thus improving system performance.
Variables like material type, acoustic frequency, and crystal orientation all affect efficiency. Getting these parameters optimized can really enhance pulse energy and uniformity, and make your laser system more efficient and reliable.
5. RF Drive Requirements and Electrical Specifications
The RF drive requirements are often overlooked but are critical to the stable operation of an acousto-optic Q-switch. Each Q-switch is designed to operate at specific RF frequencies, voltages, and power levels. Mismatched or unstable RF drive can result in incomplete modulation, pulse instability, or even damage to the device.
For optimal performance, engineers should ensure that the electrical specifications of the Q-switch align with their laser system’s capabilities. Proper RF matching not only improves pulse quality but also enhances long-term reliability.
Summary: Making an Informed Decision
Choosing the correct acousto-optic Q-switch is a decision that directly impacts the performance, efficiency, and lifespan of your laser system. By making a thorough evaluation of the main specifications—optical wavelength compatibility, rise and fall time, damage threshold, diffraction efficiency, and RF drive requirements—you can have your acousto optic switch correctly optimized for your application.
Selecting a Q-switch appropriate to the operating conditions of your system not only maximizes laser performance but also enhances long-term reliability.
Investing time in learning about these critical factors puts you in control of making informed choices, building a laser system that generates high-quality, reliable pulses with minimal downtime. The proper acousto-optic Q-switch is not an accessory—it’s a cornerstone to the success of your laser system.
