Function of Modulator in Communication System
For digital communication, modulation enables you to transmit more data using a narrow frequency bandwidth.
In 1846, when humans needed to lay a submarine cable to transmit signals via wires, it was expected that the signal would weaken as it passed through the cable. It is believed that increasing the transmission power and enhancing the sensitivity of the receiver can solve the problem. However, after completion, the signal waveform received by the receiver was completely unrelated to the transmission, and this problem became a mystery for people. Ten years later, Kelven solved this problem with differential equations. He clarified that this was actually a problem of frequency characteristics, as the high-frequency components of the signal were attenuated when passing through the channel. From then on, people began to realize that channels have certain frequency characteristics, and not all frequency components in the signal can be transmitted through the channel. Therefore, modulation was proposed. This is the original signal that generally cannot be directly transmitted in most channels, so it needs to be modulated to transform it into a signal suitable for transmission within the channel.
This article will conduct an in-depth analysis of the functions of modulators in communication systems, including their working principle, necessity, modulation types, and significant importance in modern communication.
The Concept of Modulation in Communications
Modulation is defined as converting an input signal into a waveform suitable for transmission through a channel. This process is called modulation. The original signal is often called the modulated signal, also known as the baseband signal; the modulated high-frequency signal used to carry the original signal is called the carrier. Modulation matches the spectrum of the source signal with the frequency band of the channel.
A modulator is the circuit or device that performs this process. The modulator makes it possible for the signal to travel through cables, optical fibers, or the air effectively by “loading” information onto the carrier.
Low-frequency signals have very low radiation efficiency, quickly attenuate during transmission, and are readily interfered with by other signals if they are not modulated. Therefore, modulation technology is an indispensable core element of modern wireless and wired communication systems.
Why Communication Systems Need Modulation
Before analyzing the function of a modulator, let’s first understand the necessity of modulation. The main reasons for this are as follows:
1. Frequency Translation
Baseband signals are typically at lower frequencies and cannot be effectively radiated or transmitted.
Through modulation, a high-frequency carrier wave takes on the responsibility of propagation, allowing the signal to travel longer distances.
2. Multiplexing
Various carrier frequencies can be used to transmit multiple signals at once. This technique is called frequency division multiplexing (FDM).
This makes it possible for several channels or users to coexist on the same channel without interfering with one another.

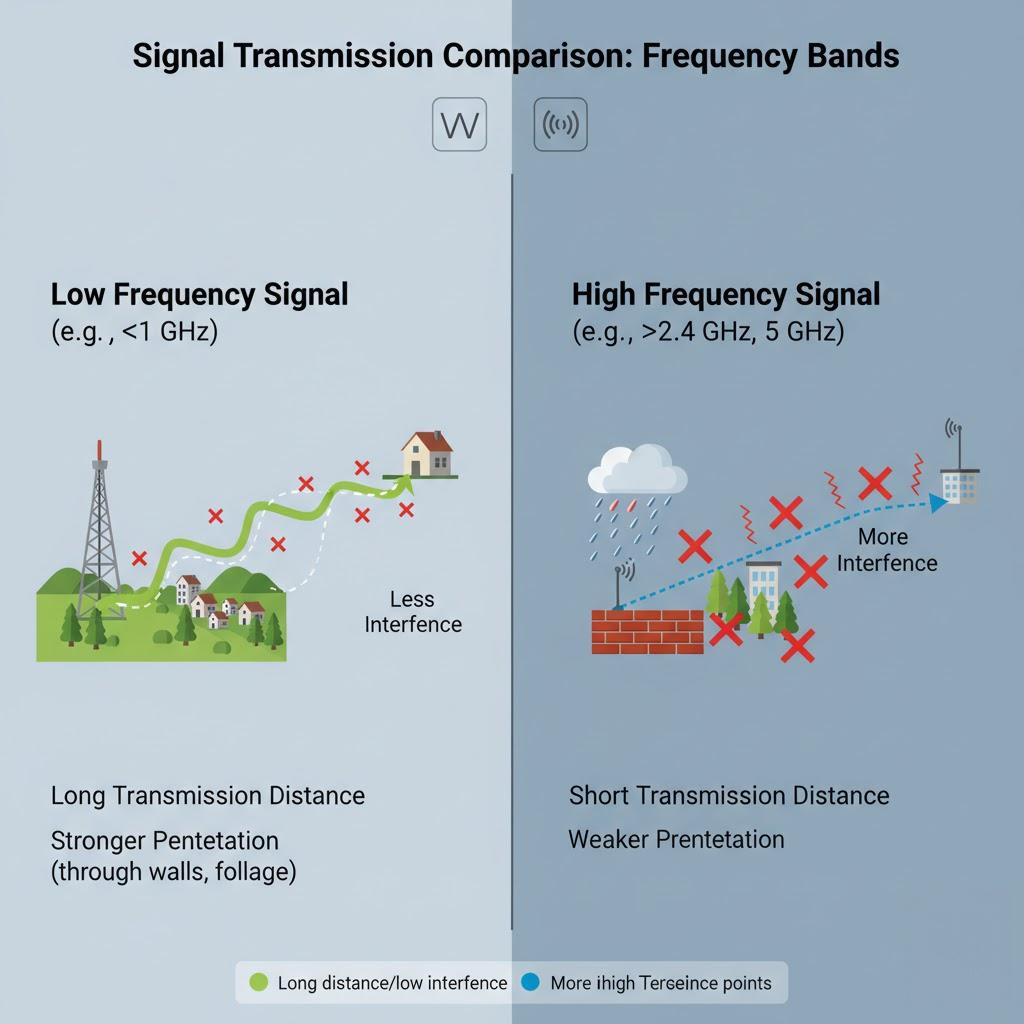

3. Increased Transmission Range
High-frequency carrier signals experience less attenuation in air or conductors, enabling long-distance communication. Furthermore, smaller antennas are required, resulting in more efficient systems.
4. Reduced Noise and Interference
Certain modulation methods, such as FM or digital modulation, offer enhanced immunity to interference, significantly improving communication stability and clarity.
5. Improved Bandwidth Utilization
By properly designing modulation methods, limited spectrum resources can be fully utilized, achieving higher data rates within limited bandwidth.
Core Function Of a Modulator in Communication System

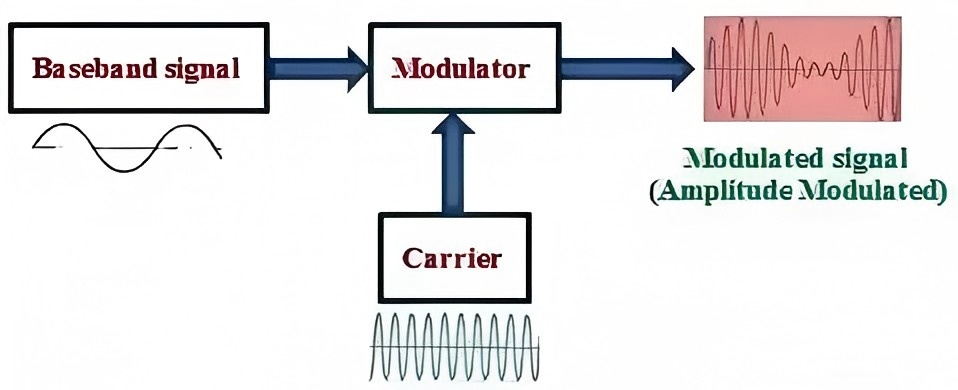

Essentially, the function of a modulator is to combine information signals with carrier signals to make them suitable for transmission. Its basic workflow is as follows:
Input baseband signal: Send voice, video or digital data to the modulator.
Generate carrier signal: Produce a stable high-frequency sine wave.
Signal fusion: Adjust a certain parameter of the carrier (amplitude, frequency or phase) according to the changes of the information signal.
Output modulated signal: Generate transmissible high-frequency signals.
In short, the modulator “encodes” information onto the carrier, enabling it to propagate smoothly in the transmission channel. The receiving end completes the opposite process through a Demodulator to restore the original signal.
Detailed Explanation of the Main Functions of a Modulator
1. Frequency shift function
The modulator “transcribe” the signal from low frequency to high frequency, enabling it to achieve effective spatial propagation. This is the foundation of all wireless and wired communication systems.
2. Multiplexing
By using different carrier frequencies, modulators can enable multiple signals to be transmitted simultaneously, which is precisely why broadcasting, telecommunications and satellite communications can coexist.
3. Enhanced Power and Range
High-frequency signals have less loss and higher radiation efficiency, thus enabling longer transmission distances.
4. Improved Signal-to-Noise Ratio (SNR)
Modulation helps transfer the signal spectrum to frequency bands with less noise, thereby improving communication quality and reducing distortion.
5. Optimized Bandwidth
By choosing the appropriate modulation method, the maximum data throughput and the minimum channel interference can be achieved within the limited bandwidth.

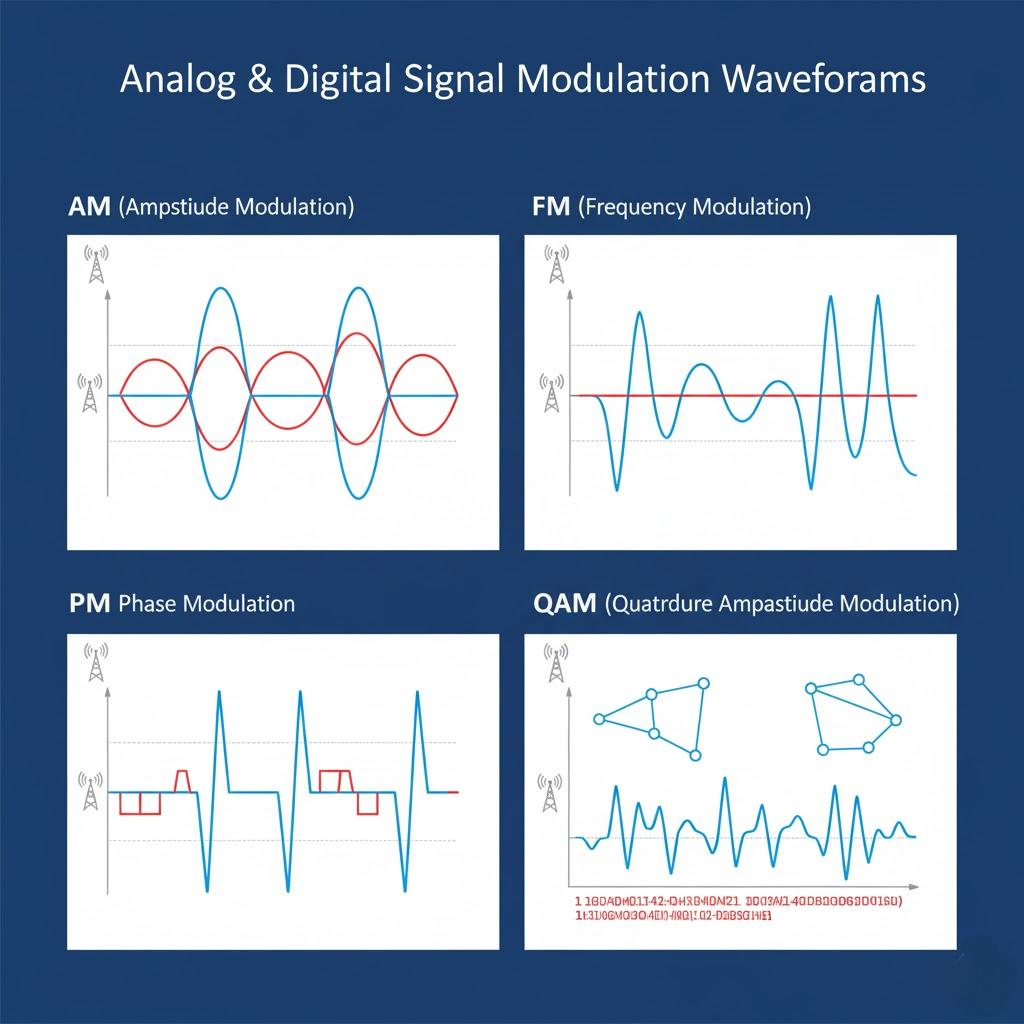

Modulation Types in Communication Systems
Modulation methods can be divided into two categories: analog modulation and digital modulation. Each method has different implementation methods and application scenarios.
1. Analog Modulation
Used for continuous signals (such as voice or analog video).
AM (Amplitude Modulation): Modulates the carrier amplitude according to the instantaneous amplitude of the baseband signal.
Commonly used in AM broadcasting, it has a simple structure but poor noise immunity.
FM (Frequency Modulation): Modulates the carrier frequency according to the information signal.
It has stronger interference immunity and is used in FM broadcasting, walkie-talkies, etc.
PM (Phase Modulation): Adjusts the carrier phase according to changes in the information signal.
It is the basis of many modern digital modulation methods.
2. Digital Modulation
It is used for transmitting digital signals (such as binary data) and converting discrete data into continuous waveforms.
ASK : The carrier amplitude switches between different values.
The implementation is simple but vulnerable to noise.
FSK : The carrier frequency switches between different discrete values.
It is widely used in low-speed data communication and modems.
PSK : Carrier phase changes represent different digital symbols.
It has stronger anti-interference ability and is widely applied.
QAM : By comprehensively utilizing amplitude and phase variations, it achieves higher data rates.
It is widely applied in high-speed communication systems such as 4G/5G and Wi-Fi.
The Importance of Modulation in Modern Communications
Modulation’s importance goes far beyond signal transmission itself; it forms the core foundation of all modern communications technologies:
- Wireless communication systems, such as broadcasting, mobile communications, and satellite communications, all rely on modulation to allocate spectrum and enable multi-user communication.
- Fiber optic communications transmit massive amounts of data by modulating the intensity, frequency, or phase of light.
- Digital broadcasting and data streaming: Modulation enables efficient transmission and decoding of video, audio, and network data.
- Radar and measurement and control systems: Modulation enables precise signal detection and distance measurement.
Without modulation, modern communications would be impossible to achieve long-distance, high-speed, and highly reliable transmission.
The Relationship Between Modulation and Demodulation
Communication systems involve two basic processes:
- Modulation: The transmitter transfers information onto a carrier for transmission;
- Demodulation: The receiver extracts the original information from the modulated signal.
Collectively, these two processes are called modulation and demodulation. The quality of modulation directly determines the accuracy of demodulation and the quality of communication, making both equally important in a system.
Conclusion
In conclusion, the role of modulators in communication systems is of vital importance.
It achieves efficient, long-distance and anti-interference information transmission by converting low-frequency baseband signals into high-frequency carrier signals.
From traditional AM/FM broadcasting to modern 4G, 5G and Wi-Fi systems, modulation technology has always been at the core of communication systems. It not only improves the spectrum utilization rate, but also supports multiplexing, enhances signal strength and reduces interference, serving as the fundamental support for realizing the modern information society.
In a nutshell: Without modulation, there would be no modern communication.
