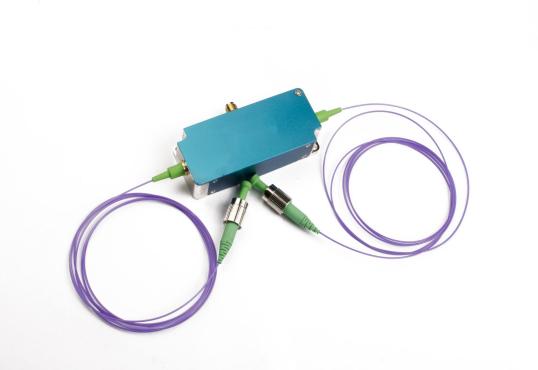

Customized Fiber AOM
Product name: Fiber acoustooptic modulator (AOM)
Product model: customized
Product overview: An optical modulator is a kind of photoelectric product that uses the principle of acousto-optic interaction to modulate the amplitude of a laser beam and shift the frequency.
PerformanceCharacteristics of Customized FiberAOM
- High-frequency stability
- Low insertion loss
- High extinction ratio
- Small size
- High-temperature stability and reliability
Ordering Information of Custom Fiber Acousto-optic Modulator
| Wavelength (nm) | Shift Frequency (MHz) | Insertion loss (dB) | On-off extinction ratio (dB) | Rise time(ns) | Polarization extinction ratio (dB) | Driving power (W) | Fiber | Package |
| 450-600 | 40-80 | <3 | >50 | ≈300 | >20 | <0.3 | PM | FA/FH/FC |
| 80-150 | <3 | >50 | <50 | >20/- | <1 | PM/SM | FA/FH/FC | |
| 150-200 | <3 | >50 | 15-20 | >20/- | <1 | FA/FH/FC | ||
| 200-300 | <3.5 | >50 | 6-15 | >20/- | <1.5 | FA/FH/FC | ||
| 600-750 | 20-60 | <3 | >50 | ≈300 | >20 | <0.3 | PM | FA/FH/FC |
| 60-150 | <3 | >50 | <50 | >20/- | <1 | PM/SM | FA/FH/FC | |
| 150-200 | <3 | >50 | 15-20 | >20/- | <1 | FA/FH/FC | ||
| 200-300 | <3.5 | >50 | 6-15 | >20/- | <1.5 | FA/FH/FC | ||
| 700-900 | 20-60 | <3 | >50 | ≈300 | >20 | <0.3 | PM | FA/FH/FC |
| 60-150 | <3 | >50 | <50 | >20/- | <1 | PM/SM | FA/FH/FC | |
| 150-200 | <3 | >50 | 10-20 | >20/- | <1 | FA/FH/FC | ||
| 200-300 | <3.5 | >50 | 8-15 | >20/- | <1.5 | FA/FH/FC | ||
| 800-1500 | <10 | >50 | <10 | >20/- | <2 | PM | FA | |
| 900-1100 | 20-60 | <2.5 | >50 | ≈300 | >20 | <0.5 | PM | FA/FH/FC |
| 80-120 | <2.5 | >50 | <50 | >20/- | <1.5 | PM/SM | FA/FH/FC/FG | |
| 150-200 | <2.5 | >50 | 10-20 | >20/- | <1.5 | FA/FH/FC/FG | ||
| 200-300 | <3 | >50 | 10-15 | >20/- | <1.5 | FA/FH/FC | ||
| <2.5 | >50 | 7-10 | >20 | <1.0 | PM | FA/FH/FC | ||
| 300-400 | <3 | >50 | 5-8 | >20 | <1.0 | PM | FA/FH/FC | |
| 1200-1400 | 20-60 | <2.5 | >50 | ≈300 | >20 | <0.5 | PM | FA/FH/FC |
| 60-150 | <2.5 | >50 | <50 | >20/- | <2 | PM/SM | FA/FH/FC | |
| 40-150 | <3 | >50 | <70 | >20/- | <0.3 | FA/FH/FC | ||
| 150-200 | <3 | >50 | 15-20 | >20/- | <2 | FA/FH/FC | ||
| <3 | >50 | 20-40 | >20/- | <0.2 | FA/FH/FC | |||
| 200-300 | <5 | >50 | 8-15 | >20/- | <2 | FA/FH/FC | ||
| <3 | >50 | 8-10 | >20 | <1 | PM | FA/FH/FC | ||
| 300-400 | <4 | >50 | 6-8 | >20 | <1.5 | PM | FA/FH/FC | |
| 1500-1700 | 20-40 | <2.5 | >50 | ≈300 | >20 | <0.5 | PM | FA/FH/FC |
| 40-160 | <3 | >50 | 20-60 | >20/- | <2 | PM/SM | FA/FH/FC | |
| <3 | >50 | <70 | >20/- | <0.2 | FA/FH/FC | |||
| 150-200 | <5 | >50 | 10-20 | >20/- | <2 | FA/FH/FC | ||
| 200-300 | <7 | >50 | 8-12 | >20/- | <2 | FA/FH/FC | ||
| <3 | >50 | 8-10 | >20 | <2 | PM | FA/FH/FC | ||
| 300-400 | <4 | >50 | 6-8 | >20 | <2.5 | PM | FA/FH/FC | |
| 1900-2200 | 40-160 | <3 | >50 | 20-60 | >20/- | <0.3 | PM/SM | FA/FH/FC |
| 150-200 | <3 | >50 | 10-20 | >20 | <2 | PM | FA/FH/FC | |
| 200-300 | <5 | >50 | 8-10 | >20 | <2.5 | PM | FA/FH/FC |
