1064nm High Power Fiber AOM Series
Acousto-optic modulator is a kind of product that uses acousto-optic interaction principle to modulate laser intensity and shift frequency. The wavelengths range from the visible to the infrared region. Frequency range from 120-300MHz is optional, other frequency products can also be customized. Some optical fiber devices can withstand high-power optical inputs up to 5W ((customizable) ) to meet the needs of different application scenarios. The product adopts an all-metal structure design, compact and robust sealing package structure, and innovative packaging technology to ensure high reliability and temperature stability.
Characteristics of 1064nm High Power Fiber AOM Series
- Short response time
- Low insertion loss
- High extinction ratio
- High-temperature stability and reliability
- Small size
Applications of 1064nm High Power Fiber AOM Series
- Q-switched fiber laser
- Laser Doppler coherent application
- Ultra-fast laser frequency reduction menu
- Linear frequency modulation
Ordering Information of 1064nm High Power Fiber AOM Series
This indicator is a typical optical wavelength indicator, and other wavelengths and frequencies can be selected
| Parameter | Unit | Single mode fiber is represented by “1”, and single mode polarization maintaining fiber is represented by “1P”. | |||
| SGTF120-1064-1FG SGTF120-1064-1PFG | SGTF150-1064-1FG SGTF150-1064-1PFG | SGTF200-1064-1FG SGTF200-1064-1PFG | SGTF300-1064-1PFG | ||
| Insertion loss | dB | <2.5 | <3.5 | <4.5 | <5 |
| Rise time | ns | <45 | < 20 | <12 | <10 |
| shift frequency | MHz | 120 | 150 | 200 | 300 |
| 3dB frequency shift bandwidth | MHz | >20 | >30 | >40 | >60 |
| Wavelength | nm | 1030-1080 | |||
| Optical power | W | ≤5W | |||
| On – off extinction ratio | dB | ≥50 | |||
| Polarization extinction ratio (PM device) | dB | ≥20 | |||
| Polarization dependent loss (SM device) | dB | <0.5 | |||
| Driving power | W | <2 | |||
| Fiber type | – | PM980、HI1060 or others | |||
| Optical fiber connector | – | FC/APC | |||
| RF input joint | – | SMA | |||
| Fiber length | m | >1 | |||
| Input impedance | Ω | 50 | |||
| VSWR | – | <1.3:1 | |||

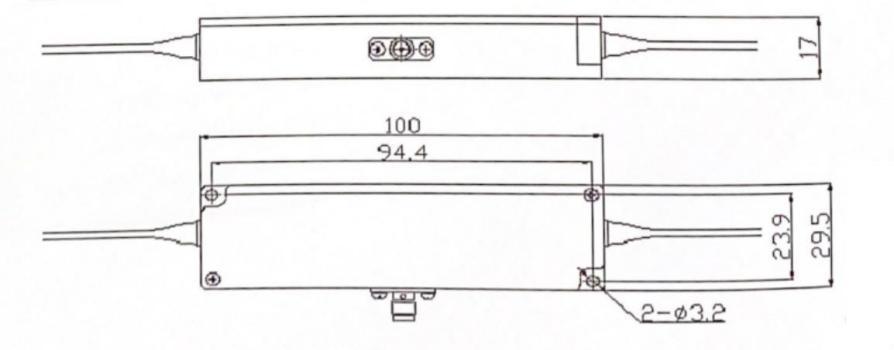

| Package | – | FG | |||

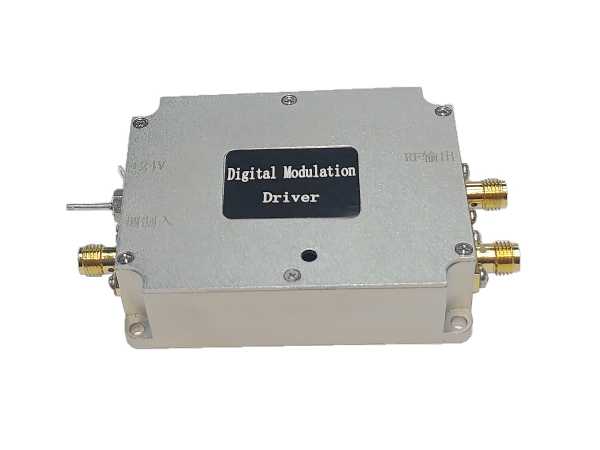

Low-power N-type Acousto Optic Driver for 1064nm High Power Fiber AOM Series
An acousto-optic driver is a specialized radio frequency (RF) signal generator used to drive acousto-optic devices with an output power of around 2W. The driver generates an RF signal that stimulates ultrasonic waves in the crystal of the modulator and changes the refractive index of the acousto-optical medium, thus affecting the beam properties. The frequency and intensity of the RF signal directly affect the intensity, deflection Angle, or tuning degree of the beam. The driver has good heat dissipation capacity and temperature stability.
| Supporting drive | Model SGXXXX-33-N-ab offers functionalities for frequency shifting (Y) and modulation (T) of RF signals. Its operating frequency is denoted by “XXX”, while “33” specifies the RF output power. The package type is indicated by “N”. Power supply voltage options are 24V (1) and 12V (2). Finally, “D” represents digital TTL modulation and “A” represents analog modulation. | |||
| SGT120-33-N2-1D SGT120-33-N2-1A1 SGT120-33-N2-1A5 | SGT150-33-N2-1D SGT150-33-N2-1A1 SGT150-33-N2-1A5 | SGT200-33-N-1D SGT200-33-N-1A1 SGT200-33-N-1A5 | SGT300-33-N2-1D SGT300-33-N2-1A1 SGT300-33-N2-1A5 | |
Performance of Low-power N-type Acousto Optic Driver on High Power Fiber AOM
- Small size
- Fast response time
- Low power consumption
- High-temperature stability and reliability
| Item | Unit | Performance | |||
| Specifications of modulation input interface | |||||
| Modulated signal input | – | Digital modulation (high level 3.3-5V; low level 0-0.2V@1k Ω) Analog modulation (A1: 0-1V@50 Ω） Analog modulation (A5: 0-5V@1k Ω） | |||
| Interface | – | SMA | |||
| RF output interface specification | |||||
| Output signal frequency | MHz | 120 | 150 | 200 | 300 |
| Frequency stability | ppm | 20 ( 1 Special) | |||
| Output signal power | W | ＜2 | |||
| Rise and fall time | ns | <25 | <20 | <10 | <8 |
| Switching ratio | dB | ≥60 | |||
| Harmonic suppression ratio | dBc | >25 | |||
| Signal output standing wave ratio | – | ≤1.3 | |||
| Interface | – | SMA | |||
| Complete machine specification | |||||
| Maximum power consumption | W | 10 | |||
| Working voltage | Vdc | 24±1V（Optional 12±0.5V） | |||
| Power interface | – | Through core capacitance (core wire is connected to positive, solder lug is connected to negative) | |||
| Package | – | N/N2 | |||
