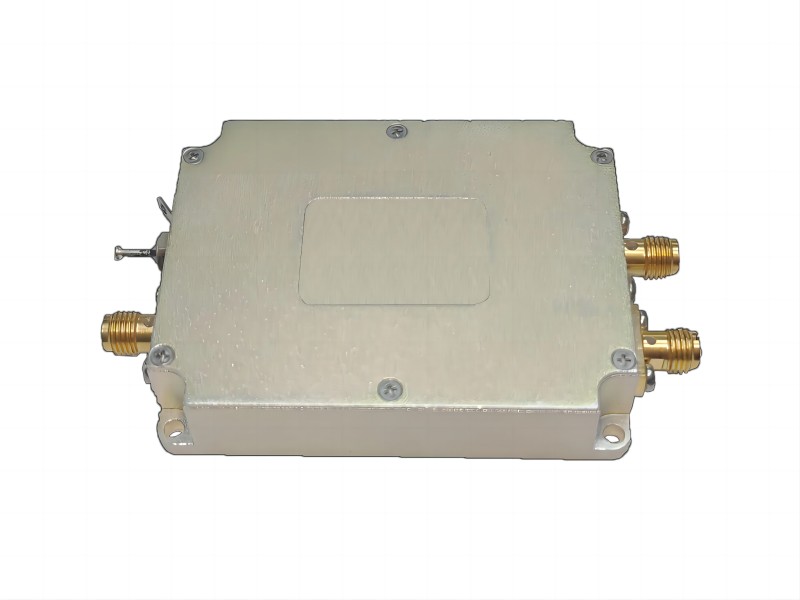

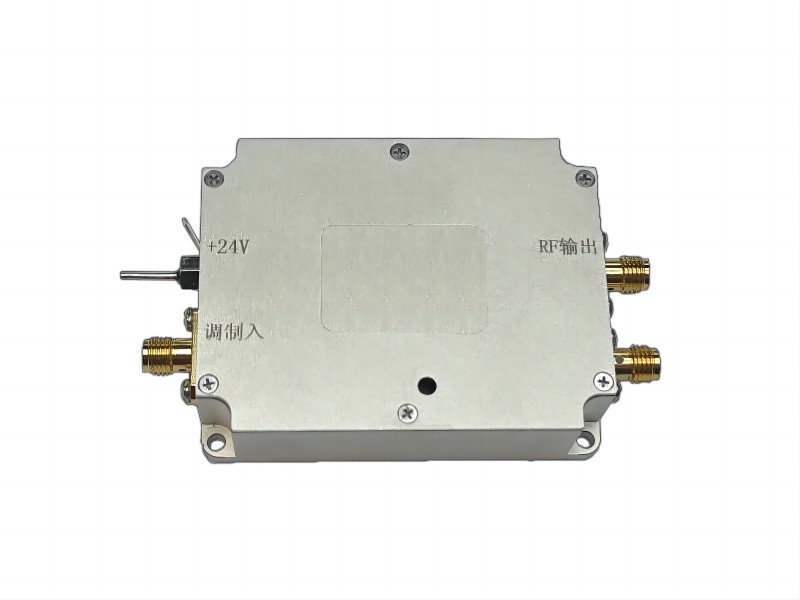

Low-power N-type Acousto-optic Driver
The low-power N-type acoustooptic driver is a dedicated radio frequency (RF) signal generator specifically designed for acousto-optic devices requiring less than 3 watts of driving power. This includes both modulators and frequency shifters. The driver generates RF signals that, when applied to the device’s crystal, create ultrasonic waves. By adjusting the frequency and intensity of these RF signals, the driver precisely controls the modulation (intensity), deflection (direction), and tuning (frequency) of the laser beam. The driver features efficient heat dissipation for reliable operation, and using the corresponding matched driver further enhances temperature stability for optimal performance.
Characteristics of Low-power N-type Acoustooptic Driver
- Small size
- Fast response time
- Low power consumption
- High-temperature stability and reliability
| Supporting Drive | The SGXXXX-33-N-ab model offers two key functionalities: frequency shifting (“Y”) and modulation (“T”). Its operating frequency, represented by “XXX”, determines the RF output power, specified here as 33 dBm. The letter “N” indicates the package type. It supports power supply voltages of 24V (“1”) and 12V (“2”). Finally, “D” signifies digital TTL modulation capability, while “A” indicates analog modulation. | ||
| SGT100-33-N-1D SGT100-33-N-1A1 SGT100-33-N-1A5 | SGT200-33-N-1D SGT200-33-N-1A1 SGT200-33-N-1A5 | SGT300-33-N-1D SGT300-33-N-1A1 SGT300-33-N-1A5 | |
Ordering Information of Low-power N-type Acoustooptic Driver
This indicator is a typical optical wavelength indicator, and other wavelengths and frequencies can be selected.
| Item | Unit | Performance | ||
| Specifications of the modulation input interface | ||||
| Modulated signal input | – | Digital modulation (high level 3.3-5V; low level 0-0.2V@1k Ω) Analog modulation (A1: 0-1V@50 Ω） Analog modulation (A5: 0-5V@1k Ω） | ||
| Interface | – | SMA | ||
| RF output interface specification | ||||
| Output signal frequency range | MHz | 100 | 200 | 300 |
| Maximum input power | dBm | 20 ( 1 Special) | ||
| Rise and fall time | ns | <25 | <10 | <7 |
| Output signal power | W | ＜2 | ||
| Switching ratio | dB | ≥60 | ||
| Harmonic suppression ratio | dBc | >25 | ||
| Signal output standing wave ratio | – | ≤1.3 | ||
| Interface | – | SMA | ||
| Complete machine specification | ||||
| Maximum power consumption | W | 10 | ||
| Working voltage | Vdc | 24±1V（Optional 12±0.5） | ||
| Power interface | Through core capacitance (core wire is connected to positive, solder lug is connected to negative) | |||
| Package | – | N2 | ||
