1650nm Fiber AOM Series
The acousto-optic modulator utilizes the acousto-optic effect to manipulate laser light by modulating its intensity and shifting its frequency. Its operating range spans visible and infrared wavelengths. Employing a robust all-metal construction and a compact, hermetically sealed package with advanced packaging technology, the modulator delivers exceptional reliability and thermal stability.
Characteristics of 1650nm Fiber AOM Series
- Short response time
- Low insertion loss
- High extinction ratio
- High-temperature stability and reliability
- Small size
Applications of 1650nm Fiber AOM Series
- Q-switched fiber laser
- Laser Doppler coherent application
- Ultra-fast laser frequency reduction menu
- Linear frequency modulation
Ordering Information of 1650nm Fiber AOM Series
This indicator is a typical optical wavelength indicator, and other wavelengths and frequencies can be selected.
| Parameter | Unit | SGTF80-1650-1P | SGTF150-1650-1P | SGTF200-1650-1PFH |
| Insertion loss | dB | <2.5 | <3 | <4 |
| Rise time | ns | <45 | <30 | <12 |
| Shift Frequency | MHz | 80 | 150 | 200 |
| 3dB frequency shift bandwidth | MHz | >15 | >30 | >40 |
| Wavelength | nm | 1650 (Typical value) | ||
| Optical power | W | ≤0.5 | ||
| On-off extinction ratio | dB | ≥50 | ||
| Polarization extinction ratio (PM device) | dB | ≥20 | ||
| Polarization Dependent loss (SM device) | dB | <0.5 | ||
| Driving power | W | <2 | ||
| Fiber type | – | – | ||
| Optical fiber connector | – | FC/APC | ||
| RF input joint | – | SMA | ||
| Fiber length | m | >1 | ||
| Input impedance | Ω | 50 | ||
| VSWR | – | <1.3:1 | ||
| Package | – | FA/FH | ||

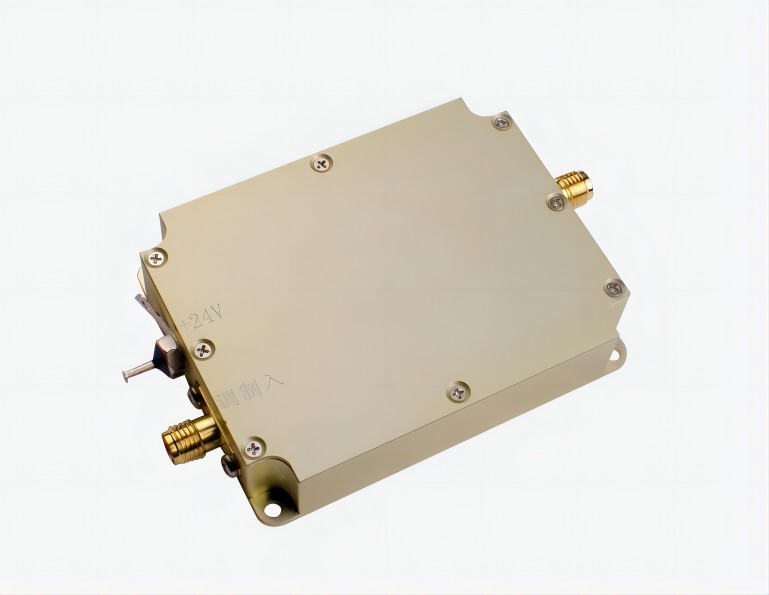

Low-power N-type Acousto Optic Driver for 1650nm Fiber AOM Series
An acousto-optic driver is an electronic device that generates radio frequency (RF) signals to control acousto-optic devices, such as modulators and frequency shifters, requiring less than 3 watts of power. Piezoelectric transducers convert radio frequency electrical signals into ultrasonic signals. By adjusting the frequency and strength of the RF signal, the driver can precisely control the modulation, deflection, or tuning of the laser beam. The drive effectively dissipates heat for reliable operation, and the use of matching drives further increases temperature stability.
| Supporting Drive | The model designation SGXXXX-33-N-ab provides a concise overview of its key specifications: Function: “X” signifies its ability to shift the frequency of light, while “T” indicates its modulation capability, allowing for intensity control of the laser beam. Operating frequency and power: “XXX” represents the specific frequency at which the driver operates, while “33” specifies the radio frequency (RF) output power. Package type: “N” indicates the physical package style of the driver. Power supply: “A” with options “1” and “2” correspond to power supply voltages of 24V and 12V, respectively. Modulation type: “b” with options “D” and “A” specify whether the driver supports digital TTL modulation or analog modulation for controlling the laser beam. | ||||||
| SGT80-33-N-1D SGT80-33-N-1A1 SGT80-33-N-1A5 | SGT150-33-N-1D SGT150-33-N-1A1 SGT150-33-N-1A5 | SGT200-33-N-1D SGT200-33-N-1A1 SGT200-33-N-1A5 | |||||
Performance of Low-power N-type Acousto Optic Driver on Fiber AOM
- Small size
- Fast response time
- Low power consumption
- High-temperature stability and reliability
| Item | Unit | Performance | ||
| Specifications of the modulation input interface | ||||
| Modulated signal input | – | Digital modulation (high level 3.3-5V; low level 0-0.2V@1k Ω) | ||
| Analog modulation (A1: 0-1V@50 Ω） | ||||
| Analog modulation (A5: 0-5V@1k Ω） | ||||
| Modulated signal input impedance | Ω | – | ||
| Interface | – | SMA | ||
| RF output interface specification | ||||
| Output signal frequency | MHz | 80 | 150 | 200 |
| Frequency stability | ppm | 20 ( 1 Special) | ||
| Output signal power | W | ＜2 | ||
| Rise and fall time | ns | <25 | <20 | <10 |
| Switching ratio | dB | ≥60 | ||
| Harmonic suppression ratio | dBc | >25 | ||
| Signal output standing wave ratio | – | ≤1.3 | ||
| Interface | – | SMA | ||
| Complete machine specification | ||||
| Maximum power consumption | W | 10 | ||
| Working voltage | Vdc | 24±1V（Optional 12±0.5） | ||
| Power interface | Through core capacitance (core wire is connected to positive, solder lug is connected to negative) | |||
| Package | – | N/N2 | ||
