A Guide to Choosing an Acousto-Optical Modulator (AOM)

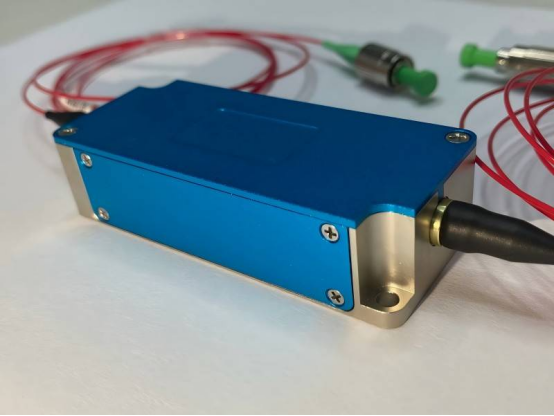

Acousto-optical modulators (AOMs) are versatile devices widely used in applications such as laser systems, optical communication, and spectroscopy. They enable precise control of light, modulating its intensity, frequency, and direction by utilizing the interaction between sound waves and light in a medium. Choosing the right AOM for your specific application is critical to ensure optimal performance, reliability, and cost-effectiveness. This guide delves into the essential parameters to consider when purchasing an acousto-optical modulator.

1. Operating Wavelength

The operating wavelength is a fundamental parameter that determines the compatibility of an AOM with your laser system. AOMs are designed to work within specific wavelength ranges, dictated by the material properties of the crystal, such as tellurium dioxide (TeO₂), quartz, or lithium niobate. Using an AOM outside its specified wavelength range can significantly reduce its efficiency or even damage the device.

Key Considerations:

• Laser Wavelength: Ensure the AOM’s range matches your laser’s output wavelength.
• Material Selection: TeO₂ is preferred for high diffraction efficiency and wide wavelength ranges, while quartz may be chosen for its robustness in specific spectral regions.

2. Diffraction Efficiency

The diffraction efficiency refers to the percentage of incident optical power that the AOM diffracts into the first-order beam. Higher diffraction efficiency means more effective modulation of the input light, which is critical for high-performance applications.

Key Considerations:

• Efficiency vs. Application: For applications requiring high power, aim for AOMs with >80% efficiency.
• Adjustability: Some AOMs allow tuning of diffraction efficiency for specific tasks.

3. RF Drive Frequency

The RF drive frequency determines the acoustic wave’s frequency used to modulate light in the AOM. It directly affects the modulation speed and interaction efficiency.

Key Considerations:

• Frequency Range: AOMs typically operate in the MHz to GHz range. Higher frequencies enable faster modulation but may require more advanced and expensive RF AOM drivers.
• Application-Specific Needs: For high-speed systems, prioritize AOMs with higher RF frequencies.

4. Modulation Bandwidth

The modulation bandwidth defines how quickly the AOM can respond to changes in the input RF signal, dictating the maximum rate of light modulation. It is directly linked to the acoustic transit time through the optical beam.

Key Considerations:

• Bandwidth vs. Speed: For fast modulation tasks, such as high-speed communication or pulsed laser systems, select an AOM with a high modulation bandwidth.
• Physical Limitations: Consider the trade-off between modulation speed and system complexity.

5. Rise and Fall Time

The rise and fall times measure the time it takes for the AOM to switch the light intensity from off to on and vice versa. These parameters are crucial for applications requiring rapid switching, such as optical switching and pulse shaping.

Key Considerations:

• Beam Size: Smaller beams result in faster switching times.
• Driver Compatibility: Ensure your RF AOM driver supports the required switching speed.

6. Input Power and Damage Threshold

The input power capacity and damage threshold indicate the maximum optical power the AOM can handle without suffering performance degradation or physical damage.

Key Considerations:

• Laser Power: Match the AOM’s damage threshold to your laser’s output to avoid overloading the device.
• Cooling Requirements: For high-power applications, consider AOMs with integrated cooling solutions.

7. Acoustic Material

The material of the AOM crystal significantly influences its performance, including wavelength range, diffraction efficiency, and thermal stability.

Key Materials:

• Tellurium Dioxide (TeO₂): High efficiency and broad wavelength compatibility.
• Quartz: Robust and suitable for UV applications.
• Lithium Niobate: Ideal for applications requiring electro-optical properties.

8. Interaction Geometry

The interaction geometry describes how light interacts with the acoustic wave in the AOM. Common configurations include collinear, quasi-collinear, and transverse geometries.

Key Considerations:

• Beam Alignment: Choose the geometry that best suits your optical system’s alignment requirements.
• Performance Impact: Different geometries influence diffraction efficiency and bandwidth.

9. Polarization Sensitivity

Many AOMs exhibit polarization sensitivity, meaning they perform optimally with light of a specific polarization. This is due to the anisotropic nature of the crystal material.

Key Considerations:

• Polarization Matching: Ensure your laser’s polarization aligns with the AOM’s requirements.
• Polarization Adjustment: Use polarizers or waveplates if necessary.

10. Insertion Loss

Insertion loss is the reduction in optical power due to the AOM being in the light path. Minimizing insertion loss is essential to maintain system efficiency.

Key Considerations:

• Loss Specification: Look for AOMs with low insertion loss (<5%).
• System Design: Proper alignment and high-quality optics can reduce additional losses.

11. Temperature Stability

The performance of an AOM can vary with temperature, as acoustic properties and crystal alignment are temperature-dependent.

Key Considerations:

• Operating Environment: Select AOMs with better thermal stability if temperature fluctuations are expected.
• Active Cooling: Consider models with integrated thermal management for high-power setups.

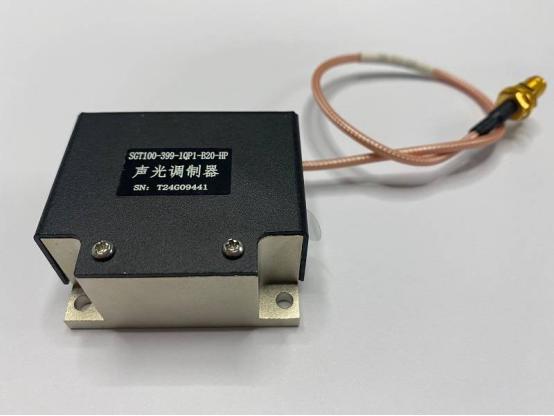

12. Size and Form Factor

The physical dimensions of the AOM must fit within the constraints of your optical setup, especially for compact or space-sensitive designs.

Key Considerations:

• Compact Designs: For portable systems, prioritize smaller, lightweight AOMs.
• Mounting Options: Ensure the AOM is compatible with your optical table or mount.

13. Cost

While performance is critical, the cost of the AOM must align with your budget. High-end AOMs often provide better performance but may not be necessary for all applications.

Key Considerations:

• Application-Specific Budgeting: Invest in high-performance AOMs only when needed.
• Long-Term Value: Consider durability and maintenance costs.

14. Longevity and Reliability

The longevity and reliability of an AOM are crucial for reducing downtime and maintenance costs, particularly in continuous-use or high-power applications.

Key Considerations:

• Manufacturer Reputation: Opt for AOMs from trusted brands.
• Lifetime Ratings: Look for devices with long operational lifespans under your specific conditions.

15. Additional Features

Modern AOMs may offer advanced features such as integrated RF drivers, multi-order diffraction, or enhanced efficiency at specific angles. These features can simplify system design and improve performance.

Key Considerations:

• Integrated Solutions: Integrated RF drivers reduce setup complexity.
• Specialized Features: Select features tailored to your application, such as multi-order capabilities for advanced diffraction control.

Selecting the right acousto-optical modulator requires a thorough understanding of its performance parameters and how they align with your application needs. From operating wavelength and diffraction efficiency to RF drive frequency and temperature stability, each factor plays a critical role in the overall performance of the system. By carefully evaluating these parameters, you can ensure your investment in an AOM meets both your technical and budgetary requirements.

Whether you’re building a high-speed communication system, conducting precise spectroscopy, or designing a cutting-edge laser system, choosing the right AOM is a step toward achieving excellence in your optical applications.
