Acousto-Optic Deflectors vs. Electro Optic Deflectors: Comparative Analysis
Acousto-Optic Deflectors (AODs) and Electro-Optic Deflectors (EODs). Both technologies play crucial roles in applications like laser scanning, optical switching and biomedical imaging; but what sets each apart and which would work best in your situation? Here is a comparison to help make an informed decision.
What is Acousto-Optic Deflectors(AODs)?

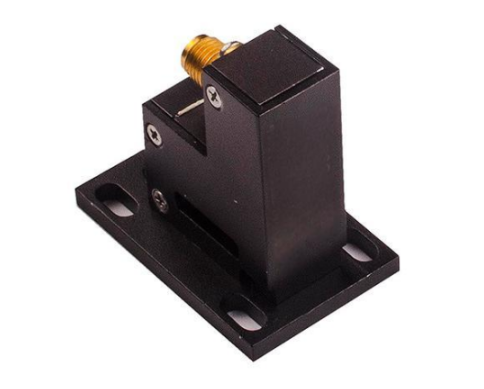

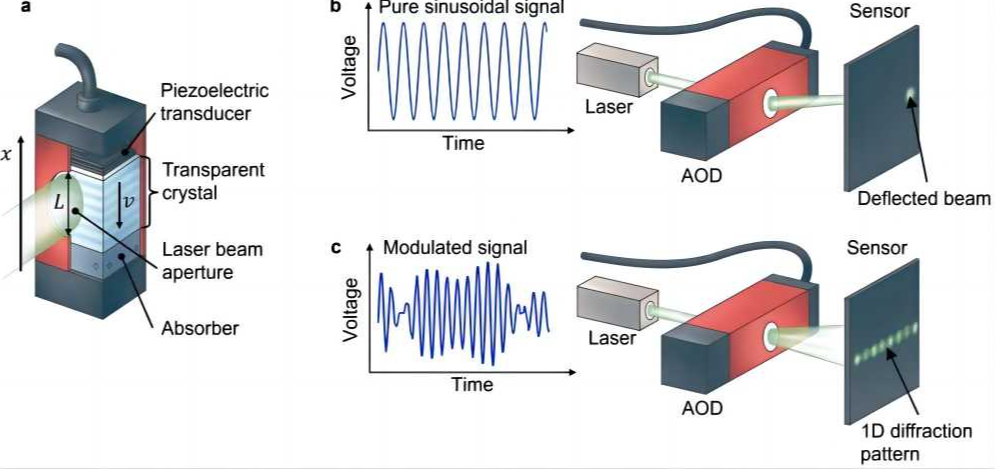

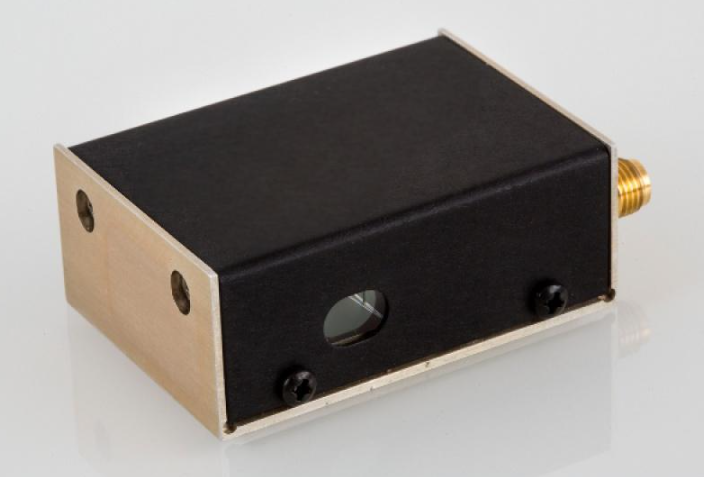

An Acousto-Optic Deflector (AOD) is a solid state device that utilizes high-frequency sound waves to precisely direct laser beams. An AOD consists of a transparent crystal (such as tellurium dioxide or fused quartz) coupled with a piezoelectric transducer and, when an RF (radio frequency) signal is applied, this transducer generates an acoustic wave which propagates throughout the crystal creating periodic variations in refractive index and thus controlling laser beams precisely.
This variation acts like a moving diffraction grating, causing laser light to bend at an angle proportional to its frequency. By changing the RF signal frequency quickly without mechanical movement, deflection angles can quickly shift allowing microsecond-speed beam steering.
Key Advantages of AODs include:
- Non-mechanical operation (no wear and tear)
- High-speed deflection (kHz to MHz response)
- Wide angular range (useful for scanning applications)
- Compact and reliable (ideal for integration into optical systems)
AODs are widely used in laser printing, microscopy, LIDAR, and optical communications, where fast, precise beam control is essential.
What is Electro-Optic Deflectors (EODs)?
An Electro-Optic Deflector (EOD) is an advanced optical device that utilizes electrical fields to precisely redirect laser beams with precise control and steering capabilities. Based on electro-optic effect principles, voltage changes altering the refractive index of a crystal, such as lithium niobate or potassium dihydrogen phosphate, may alterthe refractive index of such crystals, allowing control.
EODs offer nanosecond response times for ultrafast applications compared to mechanical systems and provide refractive index gradients across their crystal surfaces, prompting laser beam deflection as it passes.
Unlike AOD, the key advantages of EODs are as following:
- Ultra-fast beam steering (sub-microsecond switching)
- High precision (excellent for fine adjustments)
- No moving parts (long-term reliability)
- High-power laser compatibility (suitable for industrial and scientific uses)
EODs are commonly used in laser machining, optical communications, high-speed imaging, and quantum optics, where rapid and precise beam control is critical. Their ability to handle high-intensity lasers while maintaining accuracy makes them indispensable in cutting-edge optical systems.
Acousto-Optic Deflectors vs. Electro Optic Deflectors
Acousto-Optic Deflectors (AODs) and Electro-Optic Deflectors (EODs) are both essential tools in optical systems, yet they operate based on distinct principles and offer different benefits depending on the application.
Acousto-Optic Deflectors (AODs) utilize the acousto-optic effect, in which sound waves travelling through a medium (usually a crystal) modulate its refractive index to deflect light passing through it; by altering the frequency of acoustic waves deflection angle can be altered accordingly. AODs excel at providing precise beam steering solutions, making them especially suitable for applications requiring fine control, such as laser scanning, optical trapping, and spectroscopy.
Electro-Optic Deflectors (EODs), on the other hand, use the electro-optic effect, which occurs when an electric field alters the refractive index of a material. EODs are characterized by their ability to offer rapid response times and high-speed beam steering, making them ideal for applications like laser radar, high-speed laser machining, and optical switching. While EODs tend to be faster than AODs, they typically offer slightly less precision in beam deflection.
Here’s a quick comparison to highlight the key differences:
| Feature | Acousto-Optic Deflectors (AODs) | Electro-Optic Deflectors (EODs) |
| Operating Principle | Acousto-optic effect (sound waves) | Electro-optic effect (electric fields) |
| Response Time | Microseconds | Nanoseconds |
| Deflection Range | Large and continuous | Limited |
| Beam Control | Analog and precise | Fast and discrete |
| Sensitivity to Environment | Low | Higher (especially to temperature) |
| Typical Applications | Laser scanning, optical tweezers, telecommunications | High-speed beam steering, laser radar, laser printing |
In essence, AODs are preferred for applications demanding high precision, while EODs are chosen for systems requiring speed and rapid response times. Understanding these differences will help in selecting the appropriate deflector based on the system’s needs.
Different Applications of AODs and EODs
Both Acousto-Optic Deflectors (AODs) and Electro-Optic Deflectors (EODs) are widely used in various industries and scientific fields. Their unique properties make them suitable for different types of optical systems, depending on the specific requirements such as speed, precision, and control.
Applications of Acousto-Optic Deflectors (AODs):

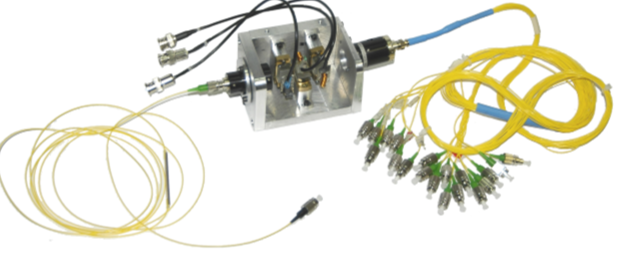

Applications of Acousto-Optic Deflectors
AODs are highly valued in applications where precision beam steering and fine control over laser position are essential. Some of the key applications include:
- Laser Scanning and Imaging: AODs are frequently employed for laser scanning microscopy (LSM) and confocal microscopy, where they precisely control laser beam movement to generate high-resolution images of samples.
- Optic Trapping and Tweezers: Advanced Optically Driven Tweezers (AODs) provide precision in manipulating microscopic particles within optical trapping systems for precise control over particle placement and movement. AODs offer precise particle manipulation by precisely tracking their position or movement within these systems.
- Spectroscopy: For use in spectroscopy, AODs can help tune laser beam wavelengths accurately for use in detailed material analysis.
- Laser Communications: AODs can deflect laser beams in optical communication systems to maximize signal transmission over long distances with minimum loss.
Applications of Electro-Optic Deflectors (EODs):
EODs excel in high-speed applications where rapid switching and scanning are necessary. Some of their most prominent uses include:
- Laser Radar (LIDAR): Electronic optical diodes are frequently utilized within light detection and ranging (LIDAR) systems to quickly steer laser beams, making them essential in autonomous vehicles, environmental monitoring applications, and mapping projects.
- Laser Machining and Material Processing: EODs are widely employed by industries that rely upon high-speed laser processing, such as cutting, engraving, and welding – activities where adjustments of beam direction must take place quickly in order to remain productive.
- Optic Switching: EODs in optical networks allow fast switching between various light paths for high-speed data transmission.
- High-Speed Scanning Systems: EODs are ideal for applications requiring rapid scanning of laser beams, including printing at high speeds, barcode scanning, and medical diagnostics.

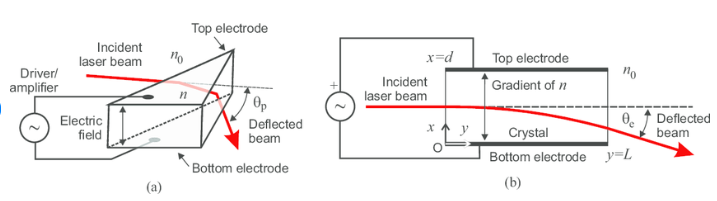

Typical configurations of an Electro-Optic Deflector
Each type of deflector is tailored to meet specific needs—AODs for precision control and EODs for high-speed applications—making them indispensable tools in both scientific research and industrial applications.
How to Choose Between AODs and EODs?
When making the selection between Acousto-Optic Deflectors (AODs) and Electro-Optic Deflectors (EODs), it’s essential to carefully consider your application requirements, such as speed, precision, and system complexity. Here are a few key aspects that could guide your choice:
1. Speed Requirements
For applications that require rapid beam steering or high-speed scanning, EODs tend to be superior choices due to their fast response times; they’re best used with applications like laser radar, high-speed machining, and optical switching where adjustments must occur quickly and frequently. AODs generally have slower response times, so they might be better for uses where speed isn’t an important consideration, such as laser switching.
2. Precise Control
For applications requiring precise control over the position or direction of light beams, AODs provide superior precision. They enable fine, analog tuning of deflection angles – something especially helpful in tasks such as laser scanning, optical trapping, and spectroscopy. Furthermore, when making subtle incremental adjustments on systems that need accurate results faster than ever, EODs simply do not compare when it comes to accuracy and precision compared with AODs.
3. Application Type
Consider the specific demands of your application:
High-Speed Applications: EODs excel at working in environments requiring fast switching or rapid changes of beam direction, such as LIDAR systems or high-speed laser machining.
High Precision: If your system requires fine control, such as microscopy or spectroscopy, AODs may provide superior beam deflection accuracy and are best-suited to tasks where precise beam deflection precision is essential.
4. Size and Complexity
EODs are generally smaller and simpler to integrate into optical systems. They are also more cost-effective, making them suitable for applications where size, weight, and budget constraints are a concern. In contrast, AODs are typically more complex and expensive but offer superior precision.
5. Budget Considerations
Finally, cost can be a deciding factor. AODs tend to be more expensive due to their precision and complexity. If your application doesn’t require extremely fine control or can tolerate slightly slower response times, EODs may provide a more cost-effective solution.
In summary, choose AODs if you need high precision and control, and opt for EODs if speed, compactness, and cost are your primary concerns. Assessing the specific needs of your application will ensure the right deflector is selected for optimal performance.
To Summary
Whether you’re designing a laser scanning system or an ultrafast optical switch, selecting the right deflector is crucial. AODs offer versatility and affordability, while EODs provide unmatched speed and precision. Evaluate your needs carefully to make the best decision.
