Fiber to Free Space 120W 1064nm Isolator

Fiber to Free Space 120W 1064nm Isolator

Specifications of Fiber to Free Space 1064nm Isolator

Specifications
ParameterUnitValue
Center Wavelength (λc)nm1064
Max. Insertion Loss, 23℃, λc @1064 nmdB0.4
Max. Insertion Loss, 23 ℃ @ 650 nmdB7
Typ. Peak IsolationdB35
Min. Isolation at  30 ℃dB28
Min. Isolation at all temperaturedB20
Min. Return LossdB50
Nominal Output Beam Diameter (1/e²)mm7 ± 0.5
Min. Beam Circularity%90
Max. M2 Degradation%10
Max. Average Optical PowerW120
Max. Peak Power for ns pulsekW30
Reverse Power HandlingW3W Continuous
Reverse Power HandlingW10W (3 min max)
Fiber Type (input port)Specified by ordering info
Operating Temperature10 to +50
Storage Temperature0 to +60

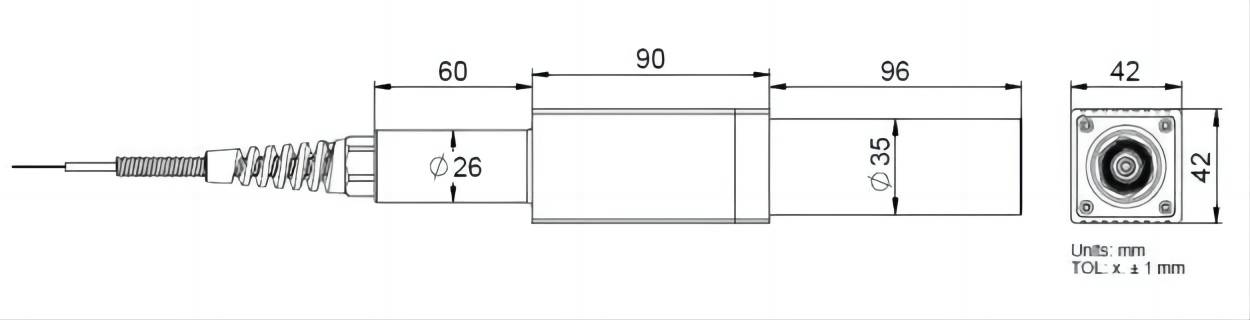

Package Dimensions of Fiber to Free Space 1064nm Isolator

Fiber to Free Space 120W 1064nm Isolator

Ordering Information of Fiber to Free Space 1064nm Isolator

FSHI-①-②-③-④-⑤-⑥-⑦

①: Wavelength06 – 1064 nm, SS – Specify
②: Handing Power120 – 120 W, SS – Specify
③: Beam Diameter7 – 7 ± 0.5 mm, SS – Specify
④: Jacket Type6 – 6 mm Armoured cable, SS – Specify
⑤: Jacket Length2 – 2.0 m, 3 – 3.0 m, 4 – 4.0 m, 5 – 5.0 m, SS – Specify
⑥: Fiber Length3 – 3.0 m, 4 – 4.0 m, 5 – 5.0 m, 6 – 6.0 m, SS – Specify
⑦: Fiber Type1 – LMA-GDF-30/250 fiber, SS – Specify
