Specifications of High Power Polarization Insensitive Isolator

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	1064
Operating Wavelength Range	nm	λc ± 10
Typ. Peak Isolation	dB	35
Min. Isolation, λc, 23 ℃, all polarization states	dB	28
Max. Insertion Loss, λc, 23 ℃ @ 300 mW	dB	1.7
Max. Insertion Loss, λc, 23 ℃ @ 1 W	dB	2.5
Max. Insertion Loss, λc, 23 ℃ @ 2 W	dB	3
Min. Return Loss (Input/Output)	dB	50/50
Max. Polarization Dependent Loss, 23 ℃	dB	0.2
Max. Average Optical Power	W	2
Max. Peak Power for ns pulse	kW	10
Max. Tensile Load	N	5
Fiber Type		Specified by ordering info
Operating Temperature	℃	10 to +50
Storage Temperature	℃	0 to +60

IL is 0.3 dB higher, RL is 5 dB lower and Optical Power is 1W only for each connector added.

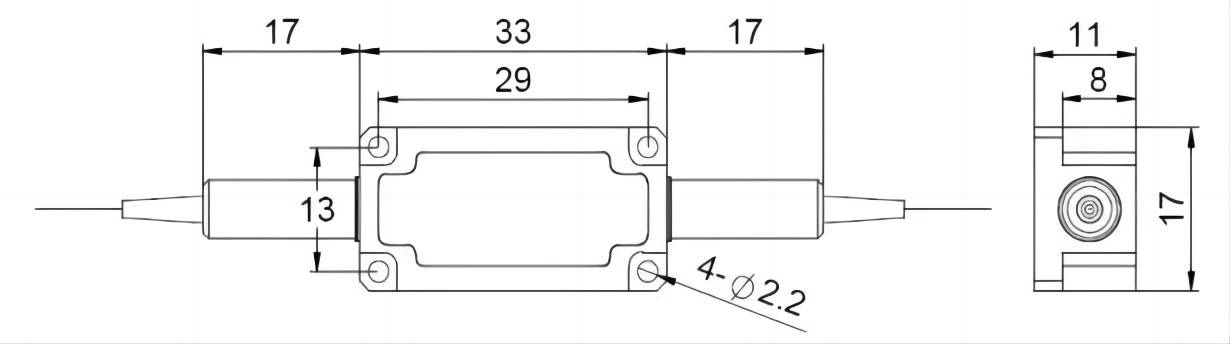

Package Dimensions of High Power Polarization Insensitive Isolator

Ordering Information of High Power Polarization Insensitive Isolator

HI2-①-②-③-④-⑤-⑥-⑦

①: Wavelength	06 – 1064 nm, SS – Specify
②: Handling Power	01 – 1 W , 02 – 2 W, SS – Specify
③: Connector Type	1 – FC/UPC, 2 – FC/APC, N – None, S – Specify
④: Fiber Type	1 –  HI1060 fiber, 2 – FUD-3584 10/125 fiber, 3 – LMA-GDF-10/125-M, S – Specify
⑤: Fiber Jacket	B –  Bare fiber, L – 900 μm loose tube, S – Specify
⑥: Fiber Length	1 – 1.0 m, S – Specify
⑦: Power Type	P – Pulse Application, C – Continuous Wave
