Specifications of High Power Polarization Insensitive Isolator

Parameter	Unit	Type A			Type B
Center Wavelength (λc)	nm	1030	1050		1064
Typ. Peak Isolation	dB	35	30		35
Min. Isolation, λc nm, 23℃, all polarization states	dB	30	25		30
Typ. Insertion Loss, 23℃	dB	0.6
Max. Insertion Loss, 23℃	dB	0.8
Max. Insertion Loss, 23℃ (Output to MMF)	dB	None		0.8
Min. Return Loss (Input/Output)	dB	50/50
Max. Polarization Dependent Loss	dB	0.2
Max. Average Optical Power	W	20
Max. Peak Power for ns Pulse	kW	10
Max. Tensile Load	N	5
Fiber Type		Specified by ordering info
MMF fiber type		None		MMF-105/125 (NA0.22)
Operating Temperature	℃	10 to +50
Storage Temperature	℃	0 to +60

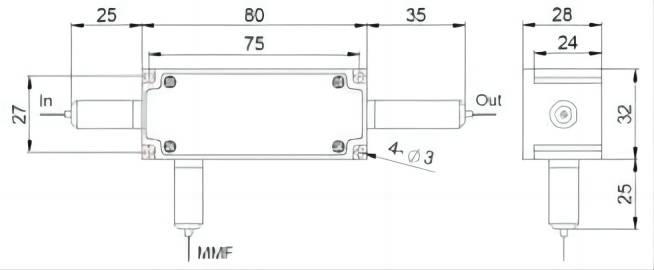

Package Dimensions of High Power Polarization Insensitive Isolator

Ordering Information of High Power Polarization Insensitive Isolator

HI-①-②-③-④-⑤-⑥-⑦-⑧

①: Wavelength	03 – 1030 nm, 05 – 1050 nm, 06 – 1064 nm, SS – Specify
②: Package Type	A – Type A, B – Type B
③: Handing Power	0.4 – 0.4 W, 10 – 10 W, 20 – 20 W, SS – Specify
④: Connector Type	N – None
⑤: Fiber Jacket	B –  Bare fiber, L – 900 μm loose tube, S – Specify
⑥: Fiber Length	1 – 1.0 m, S – Specify
⑦: Fiber Type	1 –  HI 1060 fiber, 2 – Nufern FUD-3584 fiber, 3 – Nufern LMA-GDF-10/125-M, 4 – Nufern LMA- GDF-20/130-M, 5 – Nufern LMA-GDF-30/250-M, S – Specify
⑧: Power Type	P – Pulse application, C – Continuous wave
