5 Key Specifications to Consider Before Buying an AOM Driver
Selecting the right AOM driver is a critical part of creating a high-quality and high-performance laser system. With so many specifications and technical parameters to balance, buying can be overwhelming for customers. With our background as a veteran manufacturer of AOM drivers and photonics technology, we recognize the importance of driver versus application requirements alignment. Here, we are going to explain how AOM drivers work and list five major specifications you must evaluate before purchasing, so you can purchase confidently.

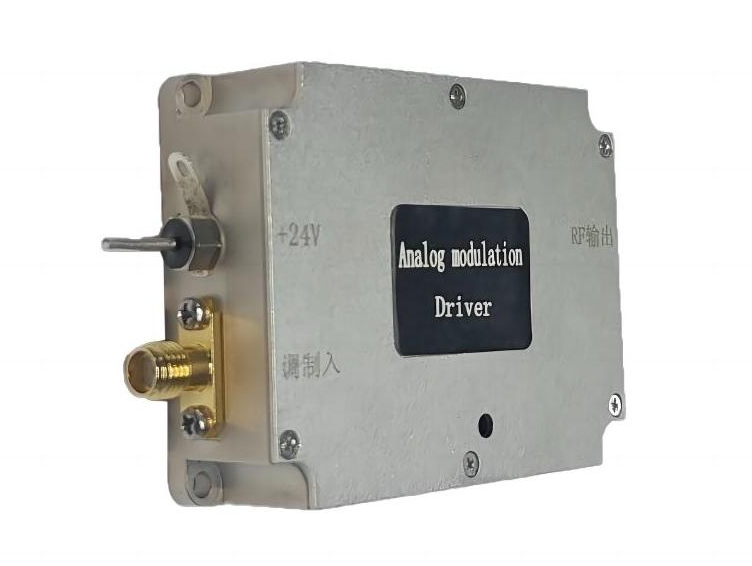

What is an AOM Driver?
An Acoustic-Optic Modulator (AOM) driver is a highly specialized electronic device to generate radio frequency (RF) signals to drive an AOM. By and large, the driver is the “power supply” and controller for the modulator and enables accurate control of laser beams in scientific, medical, and industrial applications. An AOM cannot operate correctly without a proper driver since it relies on a stable and accurate RF input to modulate light.
In photonics, AOM drivers are used to control critical laser beam parameters such as intensity, frequency, or deflection angle. The application is useful in laser spectroscopy and quantum optics, high-speed laser marking, and medical imaging. A good AOM driver provides stability, efficiency, and long-term reliability of the laser system. As a supplier, we highlight that it is as crucial to choose the correct driver as it is to choose the correct AOM crystal.
How AOM Driver Work?

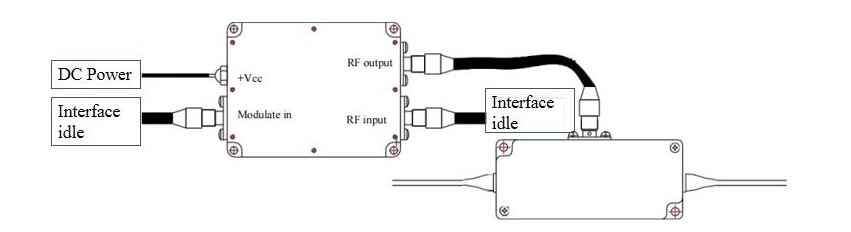

An AOM driver functions on its ability to generate and provide RF power at a specific frequency to an acoustic-optic modulator crystal.
As RF energy is applied, the crystal produces acoustic waves that produce a periodic variation in its refractive index. As the laser beam passes through the crystal, it is in interaction with the acoustic wave, and light diffraction and modulation take place. Based on the output parameters of the driver, the beam can be directed, its intensity varied, or its frequency altered. This makes laser systems have extremely fast and precise modulation, usually response times at the nanosecond level.
In research laboratory environments, AOM drivers play an important role in quantum optics experiments, time-resolved spectroscopy, and laser cooling. Industrially, they are used for providing precise control in laser cutting, engraving, and marking. The stability of the driver and the quality of design decide the consistency of performance. For this very reason, employing a good quality AOM driver is essential in any high-end photonics application.
Specifications to Consider Before Buying an AOM Driver
When evaluating an AOM driver for your laser system, it is essential to go beyond the datasheet and understand how each specification affects real-world performance. The following five factors are the most important to examine before investing.
Specification 1: Frequency Range
An AOM driver’s frequency range must match the AOM crystal it is driving. While some systems operate at standard values of 80 MHz or 200 MHz, very specialized applications may require special frequencies.
If frequency is not quite right, diffraction efficiency falls, and the laser output may become unstable. In high-precision experiments, even slight deviations in frequency can spoil results.
Always verify the frequency range of the driver and, if necessary, choose models with variable frequency to accommodate different AOM crystals or experimental setups.
Specification 2: RF Power Output
The RF power determines the acoustic wave amplitude in the crystal, controlling to what extent the laser beam is modulated.
Too little power and the beam will not be modulated at all; too much power may destroy the AOM or reduce its lifespan. For continuous working systems, power stability is as important as peak output.
Scale the RF power to your AOM specs and seek out a driver that features adjustable output or inherent stabilization capabilities, especially in heavy-demand research or industrial use.
Specification 3: Modulation Bandwidth & Response Time
This specification defines how fast the driver can modulate the laser. Fast response is crucial for pulsed lasers, ultrafast experiments, or optical communications systems.
Slow modulation can introduce timing errors, reduce accuracy, and compromise experimental results or industrial production.
Choose a driver with fast enough rise and fall times to support your system’s speed. Consider bandwidth at your application operating frequency.
Specification 4: Cooling & Thermal Management
Heat accumulation is one of the main causes of limitation for the performance and lifetime of a driver. Drivers which are not well thermally managed may suffer from RF drift or inefficient modulation.
Excessive heat may compromise beam stability and driver and AOM crystal lifetime, especially in continuous or high-power operation.
Air-cooled drivers are appropriate in lab settings, while water-cooled or hybrid systems are best for industrial and high-power uses. The inclusion of features like thermal monitoring or overheat protection enhances reliability.
Specification 5: Control Interface & Integration
The methods you use to control a system impact its convenience and versatility. Other options you may have include analogue and TTL control and digital USB or Ethernet connections.
An intricate system can slow down efficiency and productivity. This is especially true in automated or research-focused systems.
Make sure to evaluate the workflow and systems. Such integrations enable remote monitoring or automated control in complex setups.
To ensure that the AOM driver is functioning optimally and is reliable, you have to evaluate its specifications, including, but not limited to, frequency, RF power, modulation speed, thermal management, and the available interfaces. As experienced manufacturers, we know how important it is to thoroughly understand the application requirements; we know that a tailored or slightly customised solution yields the best results.
How to Choose the Right AOM Driver for Your Application
Selecting the correct AOM driver is not a simple question of comparing datasheet numbers; it’s knowing how each parameter will impact your specific laser system.
- Start by identifying the most critical needs of your application. For high-accuracy research, high modulation speed, wide bandwidth, and high frequency resolution are generally the highest priority. In industrial applications, stability, reliable RF power, and effective thermal management are more commonly essential.
- Consider the integration and control needs of your system. If remote control or automation is required, a driver with digital interfaces or programmable control will prove time- and error-saving. Alternatively, simple laboratory setups may be perfectly content with analog or TTL-controlled drivers.
- Power requirements also need to be considered. Make sure the driver’s RF output meets the specifications of the AOM, with consideration for whether the application will be continuous or involve pulsed modes. Lastly, consider reliability in the long term: proper cooling, thermal shielding, and steady performance will avoid downtime and maximize the life of your system.
By evaluating your laser system’s performance specifications, operational conditions, and integration needs, you can proceed with choosing an AOM driver that delivers accurate, stable, and efficient modulation with confidence. You may also obtain the optimal solution for specialized or custom applications from consultation with a seasoned manufacturer.
Final
Choosing the correct AOM driver is a crucial step in having your laser system efficient, reliable, and accurate. By studying frequency range, RF power, modulation rate, heat control, and control interfaces very closely, you can identify a driver that suits your application best. Carefully going through these specifications not only improves performance but also maximizes the life of your equipment.
As a professional AOM driver maker, we provide top-notch solutions and professional guidance to help you decide on the best driver for your setup. Contact us today to discuss your requirements and find out about custom solutions!
