Free-Space AOMs vs AODs: Differences and Similarities

In modern photonics and laser systems, acousto-optic devices provide precise control over the parameters of light, its spatial angle, amplitude, and even its power and frequency. Of particular importance in this regard are the acoustic optical deflectors (AODs) and airborne free-space AOM (acoustic optical modulators AOMs) due to their distinct functions and applications. Despite the fact that their operation is based on the same acousto-optic effect, both of them are fundamentally different in their principles of operation and applications. Understanding the commonalities and the differences is essential for improving the efficiency of various systems with the devices.

Space aom

Fundamentals of the Acousto-Optic Effect

Both acoustic optical deflectors (AODs) and free-space acoustic optical modulators (AOMs) have their foundations on an essential phenomenon called the acousto-optic effect. It deals with the interaction between sound waves and light waves within solids, mostly crystals.

Acousto-optic effect utilizes the phenomenon where the traveling sound wave causes the refractive index of the crystal to change continuously. As an acoustic wave moves through the medium, regions of compression and rarefaction develop, which change the density of the medium. It changes the refractive index of the medium. The change of the refractive index results in a kind of dynamic, time-varying lattice that can refract light like a grating.

A laser beam incident on the acousto-optic grating will be diffracted. The diffracted light behaves according to the incident light and the acoustic wave. Specifically:

  • Frequency Dependence: The basic principle of diffraction is retained; however, the angle of diffraction is dependent on the frequency of the acoustic wave. The angle of diffraction increases with the acoustic frequency due to higher frequencies producing smaller grating periods. This is how AODs achieve beam steering.
  • Diffraction Efficiency and Amplitude Relation: The intensity of the diffracted light corresponds with the strength of the acoustic wave. The effect of greater acoustic wave strength results in greater modulation of the refractive index, therefore causing light to be diffracted to a greater amount. Free-space AOMs operate on this principle for intensity modulation.

To conclude, the acousto-optic effect has the capability of enabling the light with sound waves. Using a sound wave of specific frequency and amplitude, the angle and intensity of the laser beam that is to be diffracted can be adjusted, this is the principle of operation of AODs and free space AOMs.

aod deflector

Acoustic Optical Deflectors: Precision Beam Steering Through Frequency Control

Acoustic optical deflectors are engineered to provide precise control over the spatial direction of a laser beam. Their fundamental operation leverages the relationship between the acoustic wave frequency and the resulting diffraction angle.

The core mechanism involves manipulating the acoustic wave frequency, which directly alters the spatial periodicity of the acoustically induced diffraction grating within the AOD’s crystal. As the frequency of the acoustic wave changes, the grating’s spacing (period) is inversely varied. This change in grating spacing directly influences the angle at which the incident laser beam is diffracted, according to the Bragg diffraction condition.

Mathematically, the diffraction angle (θ) is related to the acoustic frequency (f) and the acoustic velocity (v) within the crystal by the following approximation:

sin(θ)≈ (λf)/(2v)

where λ is the wavelength of the incident laser light, this equation highlights the direct proportionality between the diffraction angle and the acoustic frequency.

The importance AODs have in precise beam manipulation, which is critical in many industrial and scientific sectors, is due to their ability to frequency control beam steering. This is useful in:

  • High-Speed Beam Scanning: AODs allow highly precise and fast laser beam scanning over target surfaces in both raster and vector modes. This is particularly useful in laser microscopy, materials processing, and optical data storage.
  • Precise Beam Positioning: AODs permit precise beam positioning, which is important in laser marking and micromachining, and other optical systems. AODs allow rapid changes to discrete beam positions, which increases both precision and throughput in systems with rapid demand for multi-beam marking.
  • Dynamic Beam Control for Adaptive Optics: AODs are important in adaptive optics, where real-time compensation for atmospheric distortions and other optical aberrations is needed. AODs can modify their diffraction angles to compensate for beam and wavefront errors, thus improving beam and focus quality.
  •  Laser-Based Displays: AODs are critical in laser projection systems where fast and accurate scanning is needed for high-resolution image generation.

The performance of an AOD is intrinsically linked to the capabilities of its Radio Frequency (RF) driver. The RF driver is responsible for generating and controlling the acoustic wave. Crucially, the driver’s ability to rapidly and accurately modulate the acoustic frequency determines the speed and precision of the beam deflection. A high-bandwidth RF driver enables faster beam scanning and more precise control over the diffraction angle. Furthermore, the stability and spectral purity of the RF signal are essential for minimizing beam jitter and ensuring accurate beam positioning.

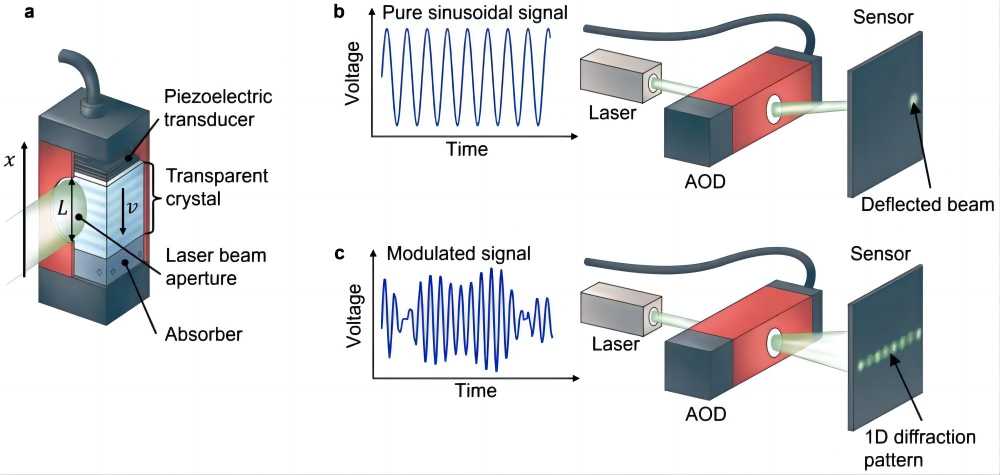

AOD-application

Free-Space Acoustic Optical Modulators: Intensity and Frequency Modulation via Amplitude Control

Free-space acoustic optical modulators are specifically designed to manipulate the intensity and, in some cases, the frequency of a laser beam through precise control of the acoustic wave’s amplitude. This contrasts with AODs, which primarily utilize frequency modulation for beam deflection.

The core operational principle of a free space AOM involves varying the amplitude of the acoustic wave propagating through the acousto-optic crystal. As the acoustic wave’s amplitude changes, the magnitude of the refractive index modulation also varies proportionally. This modulation directly affects the diffraction efficiency, which determines the amount of incident light diffracted into the desired order.

The relationship between the diffracted light intensity (Id) and the acoustic wave amplitude (A) can be approximated as:

Id∝sin2/(kA)

where k is a constant related to the acousto-optic interaction strength. This equation highlights the nonlinear relationship between the acoustic wave amplitude and the diffracted light intensity.

This amplitude-controlled modulation capability makes free space AOMs essential for a range of applications, including:

  • Precise Laser Intensity Control: free space AOMs enable highly accurate and rapid control over the laser beam’s power. This is crucial in applications like laser cutting, welding, and material processing, where precise energy deposition is required. Additionally, free space AOMs are used to stabilize laser intensity for sensitive measurements.
  • Q-Switching for Pulsed Laser Generation: Free space AOMs can act as fast optical switches within laser cavities. By rapidly modulating the diffraction efficiency, they can control the cavity’s quality factor (Q-factor). This allows for the generation of high-power, short-duration laser pulses, essential in applications like laser micromachining and nonlinear optics.
  • Frequency Shifting for Interferometry and Spectroscopy: Free space AOMs can introduce a frequency shift to the diffracted laser beam. This frequency shift is equal to the frequency of the acoustic wave. This capability is valuable in applications like interferometry, where precise frequency control is essential for measuring optical path differences, and in spectroscopy, where frequency shifting allows for accurate spectral analysis.
  • Free-Space Configuration: The term “free-space” signifies that the laser beam propagates through air or vacuum, rather than being confined within an optical fiber. This configuration is preferred in applications where direct access to the laser beam is required, such as in laboratory setups, material processing, and optical testing. It also enables higher optical power handling compared to fiber-coupled AOMs.
  • The performance of a free space AOM is heavily influenced by the Radio Frequency (RF) driver, which must provide precise control over the acoustic wave’s amplitude. The RF driver’s ability to rapidly and accurately modulate the amplitude determines the speed and precision of the intensity modulation. Furthermore, the stability and linearity of the RF signal are critical for minimizing intensity fluctuations and ensuring accurate modulation.
application of Space aom

Comparative Analysis of AODs and Free Space AOMs

While both AODs and free space AOMs are rooted in the fundamental acousto-optic effect, their distinct operational objectives and control methodologies lead to significant divergence in their applications. The key differences lie in their primary function, control parameters, application focus, and the requirements placed on their respective Radio Frequency (RF) drivers.

  1. Primary Function: Spatial Vs. Temporal/Spectral Manipulation
  • AODs: As all AODs, these devices are fundamentally spatial manipulators. AODs alter the direction of a laser beam. The desired control is accomplished through varying the angle of diffraction. This enables beam steering.
  • Free Space AOMs: Unlike AODs, these devices are both temporal and spectral manipulators. They alter the intensity or frequency of a laser beam. This modulation occurs by controlling the amplitude of the light that is being diffracted, therefore modulating its power or spectral characteristics.
  1. Control Parameter: Frequency Vs. Amplitude
  • AODs: For AODs, the most relevant control parameter is the frequency of the acoustic wave. Changes in acoustic frequency result in changes in the angle of diffraction, allowing for precise beam deflection.
  • Free Space AOMs: For free space AOMs, the relevant control parameter is the amplitude of the acoustic wave. Changes in acoustic amplitude change the efficiency of diffraction, so accurate intensity modulation can be achieved.
  1. Application Focus: Beam Steering Vs. Signal Modulation
  • AODs: Their focus lies in spatial manipulation of the beam, particularly in steering, scanning and dynamic control of beams. These devices are essential in operations which need accurate spatial placement of laser beams.
  • Free Space AOMs: Their primary application involves signal processing such as controlling the intensity, Q-switching, and shifting frequencies. These devices are essential in systems that demand high precision in the control of the laser beam’s temporal and spectral dimensions.
  1. RF Driver Requirements: Frequency Agility vs. Amplitude Stability
  • AODs: It is necessary for the RF driver for AODs to have high frequency agility, enabling rapid and accurate changes to be made to the acoustic frequency. The rate at which the frequency can be modulated determines the speed and precision of beam deflection.
  • Free Space AOMs: The RF driver for free space AOMs must demonstrate high amplitude stability. This requires precise control of the acoustic amplitude at its given value, ensuring that the AOM’s response is both consistent and accurate. The ability of the driver to maintain a stable and linear amplitude response is critical for precision in intensity modulation.

To further elucidate these distinctions, consider the following comparative table:

FeatureAcoustic Optical DeflectorFree-Space Acoustic Optical Modulator
Primary FunctionBeam Deflection (Spatial)Intensity/Frequency Modulation (Temporal/Spectral)
Control ParameterAcoustic Wave FrequencyAcoustic Wave Amplitude
Application FocusBeam Steering, Scanning, Dynamic Beam ControlIntensity Control, Q-Switching, Frequency Shifting
RF Driver RequirementFrequency AgilityAmplitude Stability
Diffracted OrderUses the angle of the first order beam.Uses the intensity of the first order beam.
Speedlimited by the acoustic wave transit time across the beam aperture.Limited by the acoustic wave transit time across the beam aperture.

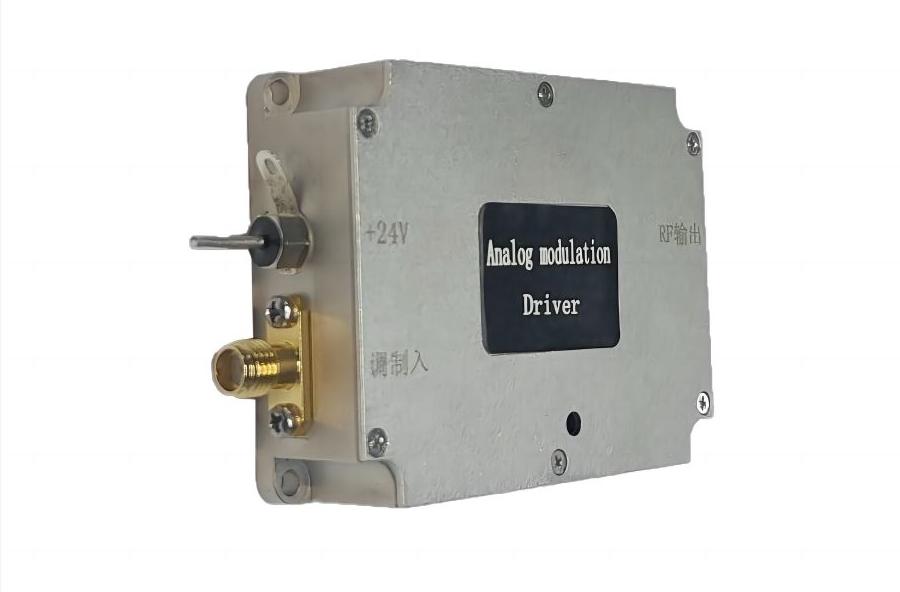

aom driver

In conclusion, AODs and free space AOMs are powerful tools in laser technology, each serving distinct purposes. AODs excel in beam steering and scanning, while AOMs are indispensable for intensity and frequency modulation. Understanding their differences is crucial for selecting the appropriate device for specific applications.
