Laser Damage Threshold: A Key Consideration in High-Power Laser Applications
In today’s era of rapid technological development, laser technology has been widely integrated into numerous fields such as scientific research, industry, and healthcare. With the continuous increase in laser power, the application of lasers is increasingly dependent on the performance of optical components. A serious challenge faced by optical components is the problem of laser damage, and the laser damage threshold has become the core indicator for measuring the anti-laser damage ability of optical components.
The Definition of Laser Damage Threshold
The laser-induced damage threshold (LIDT) is defined in ISO 21254 as “the highest laser radiation dose at which the probability of damage to an optical component is presumed to be zero.” It describes the maximum laser energy density (typically J/cm² for pulsed lasers) or maximum laser intensity (typically W/cm² for continuous-wave lasers) that an optical component can withstand before damage occurs.
Common Types of Injury
| Injury type | Mechanism | Result |
| Thermal Damage | Absorption of heat accumulation leads to melting or ablation | The film falls off and the material melts |
| Photoionization damage | Short-pulse lasers produce multi-photon absorption and ionization effects | The material structure disintegrates |
| Mechanical Stress damage | Local expansion and coating stress cracking | The coating layer is cracked |
Damage Threshold Characteristics Under Different Laser Types

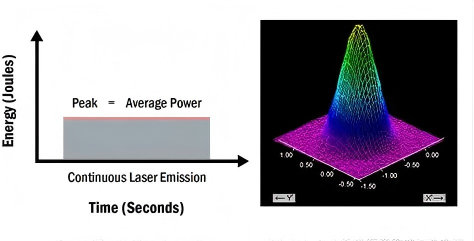

1.Continuous laser
The damage to optical components caused by continuous lasers mainly results from thermal effects. When continuous laser is directed at optical components, the components absorb part of the laser energy and convert it into thermal energy. If the components fail to dissipate this heat in time, the heat will accumulate continuously inside or on the surface of the components, causing the temperature to rise. When the temperature rises to a certain extent, it may cause thermal deformation and thermal stress damage to the components, and even lead to the melting and peeling of the optical coating layer of the components. The damage threshold of continuous laser is usually expressed by the maximum laser power density that the component can withstand, which is the ratio of average power to spot area: average power P/ spot area 3.14* r ² =W/cm ². For instance, the continuous laser damage threshold of a certain optical component is 100W/cm², which indicates that the continuous laser power density per unit area of this component should not exceed 100 watts; otherwise, it may cause damage. It should be noted that for Gaussian beams, the damage threshold needs to be more than twice the power density to be safe.
2. Pulsed laser
The damage mechanism of pulsed laser is more complex, and the threshold is expressed by the pulsed energy density J/cm².
For pulses ranging from microsecond (μs) to nanosecond (ns), the threshold is proportional to the square root of the pulse width:
LIDT(y) = LIDT(x) × (y/x)¹ᐟ²
For instance, if the threshold of a certain component is 2 J/cm² at 10 ns, then it is approximately 20 J/cm² at a pulse width of 1 μs.
For picosecond (ps) or femtosecond (fs) ultrafast lasers, their peak power is extremely high, which may directly break atomic bonds. Traditional formulas are no longer applicable, and the damage mechanism is mainly dominated by nonlinear absorption and ionization effects.
Factors Influencing The Laser Damage Threshold
The laser damage threshold is influenced by multiple factors and can be classified into three major categories:
(1) Characteristics of the laser itself
Wavelength
The shorter the wavelength, the closer the energy of the photons approaches the material’s bandgap, increasing the probability of nonlinear absorption and the factors that induce damage to the optical film. Therefore, the damage threshold of optical films generally decreases with decreasing wavelength. For example, some common optical coating materials have a relatively high damage threshold for near-infrared lasers with a wavelength of 1064nm, while the damage threshold is significantly lower for ultraviolet lasers with a wavelength of 266nm.
Pulse width
The shorter the pulse width, the higher the peak power.
The effects such as multi-photon ionization and tunneling ionization induced by femtosecond lasers significantly reduce the threshold.
Spot size
The bigger the light spot, the higher the likelihood of defects, the larger the total absorbed energy, and the more probable local damage to the film layer.
For instance, when measuring the same optical film under the conditions of a 1mm diameter light spot and a 5mm diameter light spot, with the same energy density, the larger light spot has more opportunity to cause film damage.
(2) Material and structural characteristics of optical components
Medium composition and optical uniformity
- Different materials (such as fused quartz, CaF₂, TeO₂) have different absorption and scattering characteristics.
- Internal unevenness (bubbles, streaks) can cause energy concentration and lower the threshold.
Absorbency and thermal conductivity
- The stronger the absorption, the more obvious the heat accumulation, and the higher the risk of damage.
- High thermal conductivity materials (such as diamond and sapphire) can effectively enhance the wear resistance.
(3) Processing Technology and External Environment
Processing marks and surface defects
Improper cutting and polishing can easily leave scratches and residual stress, which can become the starting point of damage.
Coating process and purity
Different methods (PVD, CVD, IBS) have a significant impact on the compactness of the film layer.
High-purity materials combined with ion beam-assisted deposition (IAD) technology can significantly increase the threshold.
Environmental cleanliness
Dust and oil stains can absorb laser energy and become a “heat source”, leading to ablation.
Therefore, high-power laser laboratories need to maintain a clean grade environment.
Practical considerations in high-power laser systems

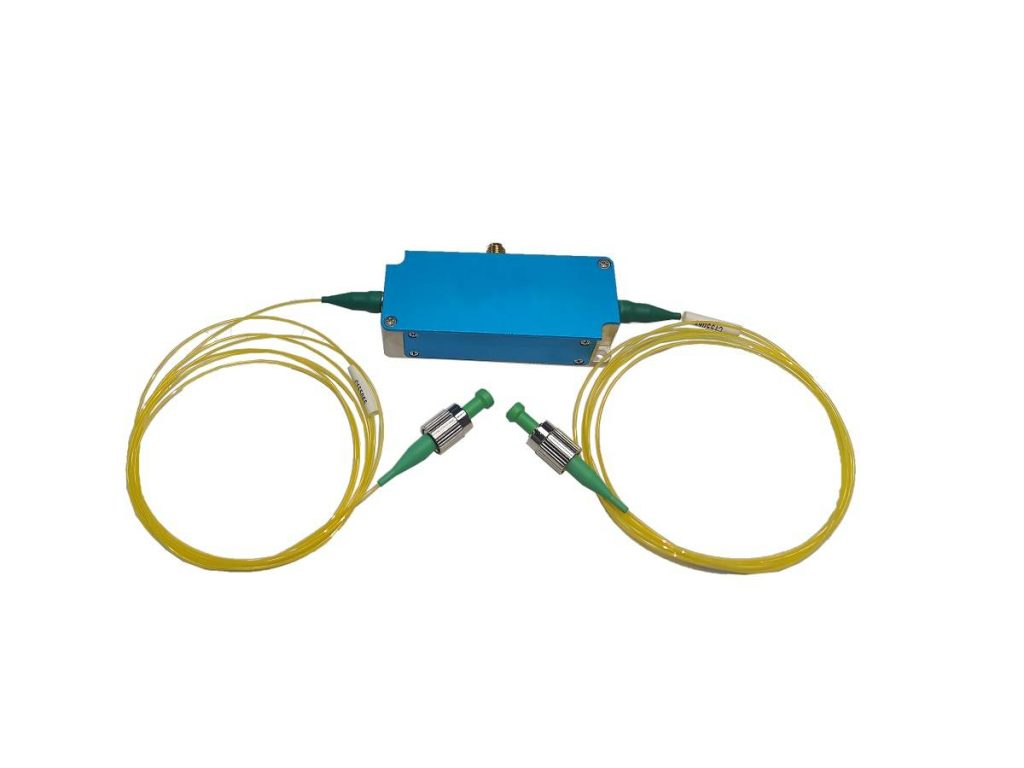

Acousto-optic modulator (AOM)
AOM crystals (such as TeO₂ and LiNbO₃) are subjected to both RF heating and strong light exposure under high-power lasers.
If the laser power density exceeds the LDT of the crystal, it will lead to a decrease in the efficiency of sound wave scattering and diffraction, and even crystal rupture.
In engineering, it should be:
Match wavelength with power density;
Control the spot size;
Use a high thermal conductivity installation base.
→Further reading：Acousto-Optic Modulator (AOM) Principle and Selection Guide
Lenses and lens systems
High-power mirrors should be equipped with a high-reflection coating (HR coating) with LDT ≥ 10 J/cm².
The focusing lens needs to take into account the thermal lensing effect and heat dissipation design.
Window and endoscope
The selection of materials with high damage thresholds (such as fused quartz and sapphire) can increase the service life.
Uniform coating and low-absorption substrates can effectively reduce thermal stress.
Engineering Strategies For Enhancing The Laser Damage Threshold
| Methods | Function | Practical suggestions |
| Material selection | Reduce absorption and increase thermal conductivity | High-purity materials such as SiO₂ and Al₂O₃ are selected |
| Surface treatment | Reduce micro-defects and residual stress | Ultra-fine polishing + ion cleaning |
| Coating process optimization | Increase density and adhesion | The IBS/IAD process is adopted |
| System design | Reduce power density and evenly distribute the light spot | Install beam expanders and improve cooling |
| Regular testing | Monitor the degradation trend of components | Establish a LIDT periodic testing mechanism |
Conclusion
The laser damage threshold is not just a physical parameter of the material; it is a comprehensive reflection of the reliability of the optical system.
In high-power laser applications, designers should optimize the material, structure, process, and environment to ensure long-term stable operation of the system.
