Narrow Linewidth Fiber Laser vs. Semiconductor Laser: Key Differences, Advantages, and Applications
In modern photonics, lasers with narrow linewidths are the most important for those applications requiring high frequency stability, coherence length, and minimum phase noise. Narrow-linewidth lasers are utilized in telecommunication, precision metrology, spectroscopy, LIDAR, and quantum technologies.
Of the most common narrow linewidth laser technologies are semiconductor lasers and fiber lasers. Even though both are designed to reduce spectral width and increase coherence, they have very different design, functionality, applications, and cost.
Where are they different? Let’s break it down.
What is Narrow Linewidth Fiber Laser
A narrow linewidth fiber laser is a laser where the spectral width of the output light is extremely narrow, typically in the range of Hz to kHz. This narrow linewidth ensures the coherence length to be extremely high and the frequency highly stable, which makes it extremely valuable in precision use.
Fiber lasers achieve this narrow linewidth through the employment of fiber Bragg gratings (FBGs) and long optical cavities to eliminate the phase noise and reduce the frequency fluctuations. The all-fiber setup also lowers sensitivity to the environment, such as temperature changes or mechanical vibrations.
Key advantages of narrow linewidth fiber lasers are:
- Ultra-low phase noise and high frequency stability
- High scalability of output power
- Excellent beam quality and reliability
They are, however, bigger and more expensive than semiconductor lasers, potentially making them inappropriate for utilization in small or cost-conscious applications.

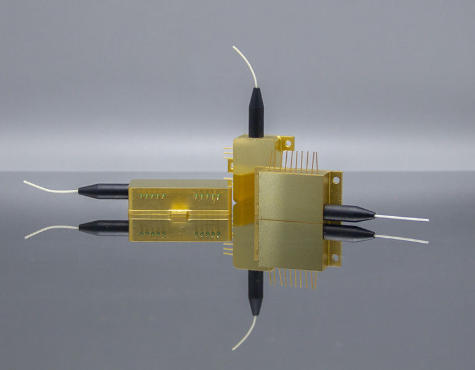

What is Narrow Linewidth Semiconductor Laser
A narrow linewidth semiconductor laser is a diode laser that is designed to emit light with narrower spectral width, typically in the kHz to MHz range. The standard semiconductor lasers have relatively broad linewidths, but techniques such as external cavity setups or distributed feedback (DFB) structures can be employed to significantly narrow their linewidth.
These lasers are very compact, power-efficient, and easy to integrate into photonic and electronic systems. They are inexpensive and small and thus well-suited for portable and mass-market applications.
Some of the key features include:
- Moderate linewidth narrowing possible with stabilization
- Cost-effective and compact form factor
- Fast tuning for communication systems
Disadvantages are higher phase noise and less long-term frequency stability than fiber lasers, which restricts their use to ultra-precision applications.
Comparison Table: Fiber Laser vs. Semiconductor Laser
If you need to choose between narrow linewidth fiber lasers and semiconductor lasers, you should understand their differences in terms of linewidth, frequency stability, power, size, cost, and applications. Narrow-linewidth fiber lasers are generally better where precision and stability are concerned, but semiconductor lasers are more compact and easier to integrate. The table below presents an overview of the prominent differences:
| Feature | Narrow Linewidth Fiber Laser | Narrow Linewidth Semiconductor Laser |
| Linewidth | Hz–kHz, extremely narrow for high-precision tasks | kHz–MHz, moderately narrow with stabilization techniques |
| Frequency Stability | Ultra-stable over long periods | Moderate, often requires active stabilization |
| Output Power | High, scalable to hundreds of watts | Moderate, typically limited by diode output capabilities |
| Size | Larger and more complex setup | Compact, easy to integrate into small systems |
| Cost | Higher due to advanced components and design | Lower, cost-effective for mass production |
| Integration | Best suited for laboratory setups and fiber-optic systems | Ideal for on-chip photonics and portable devices |
| Applications | Precision metrology, LIDAR, quantum communication, spectroscopy | Coherent optical communications, portable sensing, consumer electronics |
Fiber lasers become the option when ultra-high stability, low phase noise, and extended coherence length are required. They possess high output power and mechanical strength, making them ideal for application in quantum technologies, precision spectroscopy, and interferometric measurements.
Semiconductor lasers, nonetheless, are utilized in cases where compactness, fast tunability, and lower cost are the key considerations. They are used extensively in telecommunication networks, integrated photonic devices, as well as in handheld sensor units, where extreme stability and high power are not of utmost concern.
The selection of the proper laser gives the optimum performance for your intended use.

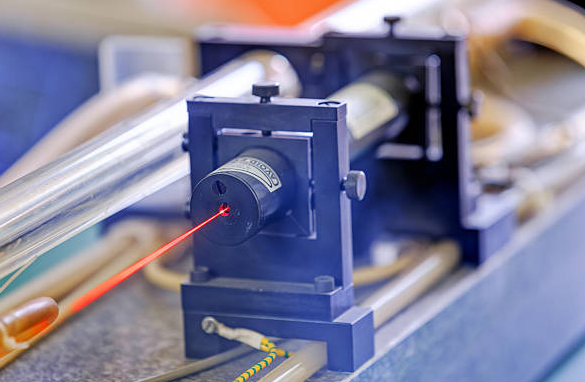

Applications and Use Cases
Narrow-linewidth lasers are employed widely in scientific applications as well as in industry due to their high coherence, frequency stability, and low phase noise. The choice between semiconductor lasers and fiber lasers depends on the application-specific performance requirements, form factor, and cost.
Applications of Narrow Linewidth Fiber Lasers
Narrow linewidth fiber lasers are ideally suited for applications requiring ultra-stable output and high accuracy, for example:
- Quantum Technologies: The ultra-low phase noise and long coherence length of fiber lasers are utilized to improve optical clocks, quantum communications, and quantum key distribution networks.
- High-Resolution Spectroscopy: Fiber lasers enable accurate frequency control required for trace gas detection, molecular structures, and monitoring the environment.
- Precision Metrology: Fiber lasers are used in interferometry, frequency combs, and optical measuring systems for accurate distance and frequency measurement.
- LIDAR Systems: Low noise and high stability fiber laser characteristics are applied in long-distance light detection and ranging applications to enable accurate distance mapping and 3D imaging.
Applications of Narrow Linewidth Semiconductor Lasers
Narrow-linewidth semiconductor lasers possess benefits in integrated, low-cost, and compact systems. The following are several of them:
- Coherent Optical Communications: Narrow linewidth diode lasers find application in high-speed fiber optic communications for signal quality improvement and noise reduction.
- Portable and Embedded Sensors: Biomedical sensors, industrial sensors, and environmental monitoring utilize semiconductor lasers’ compactness and low power requirements.
- Integrated Photonics: On-chip photonic circuits require small lasers, which can be easily integrated with other photonic and electronic components.
- Consumer Electronics: Applications include laser measurement devices, optical pointers, and compact sensing devices where moderate stability and low cost are crucial.
By understanding the unique strengths and limitations of each type of laser, engineers can select the ideal solution for their specific application needs, whether it’s ultra-precision metrology or producing portable, cost-effective devices.
Final Thoughts
From the above content, we know that narrow-linewidth lasers are crucial in modern-day photonics with high coherence, excellent frequency stability, and low phase noise for most applications. The choice of the appropriate laser type depends on executing the balance of size, performance, cost, and the need for integration.
- Fiber lasers are the option of choice when ultra-stability, low noise, and high output power are needed. They excel in precision metrology, LIDAR, quantum communication, and spectroscopy, where long-term reliability and accuracy are needed.
- Semiconductor lasers offer compactness, energy efficiency, and cost savings, and so are best applied in telecommunication networks, portable sensors, integrated photonics, and consumer products where affordability and space are key priorities.
Finally, understanding the strengths and limitations of each technology allows us to make informed decisions. The proper choice of a narrow linewidth laser delivers the optimum performance, efficiency, and reliability for the target application, whether state-of-the-art research or actual industrial deployment.
