Pump Protector
Specifications of Pump Protector
| Specifications | ||
| Parameter | Unit | Value |
| Wavelength Range | nm | 976 ± 10 |
| Max. Insertion Loss, 23℃ | dB | 0.45 |
| Min. Isolation, 23℃ @ 1020 – 1100 nm | dB | 60 |
| Min. Return Loss | dB | 50 |
| Max. Polarization Dependent Loss | dB | 0.1 |
| Thermal Stability | dB/℃ | ≤ 0.005 |
| Max. Optical Power (Continuous Wave) | W | 3 |
| Max. Peak Power for ns pulse | kW | 10 |
| Max. Tensile Load | N | 5 |
| Fiber Type | HI 1060 fiber | |
| Operating Temperature | ℃ | -5 to +70 |
| Storage Temperature | ℃ | -40 to +85 |
IL is 0.3 dB higher, RL is 5 dB lower and Optical Power is 1W only for each connector added.

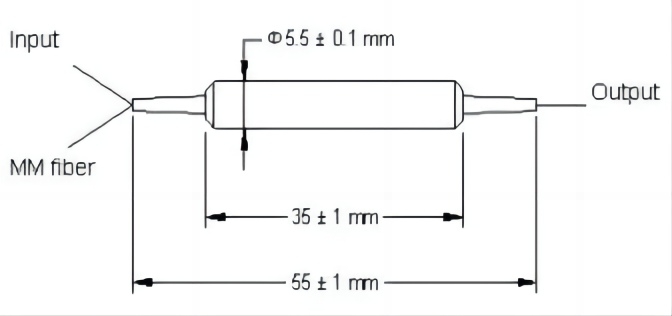

Package Dimensions of Pump Protector
Ordering Information of Pump Protector
PP-①①①-②②②②-③-④-⑤-⑥-⑦
| ①①①: Pass Wavelength | 976 – 976 nm |
| ②②②②: Blocked Wavelength | 1064 – 1064 nm |
| ③: Connector Type | 1 – FC/UPC, 2 – FC/APC, 3 – SC/UPC, 4 – SC/APC, N – None, S-Specify |
| ④: Fiber Jacket | B – Bare fiber, L – 900 μm loose tube, S – Specify |
| ⑤: Fiber Length | 1 – 1.0 m, S – Specify |
| ⑥: Ports | 2 – 2 ports, 3 – 3 ports |
| ⑦: Power Type | C – Continuous Wave, P – Pulse Application |
