High Power Polarization Maintaining Isolator – REV17 HPMI-06
Specifications of High Power Polarization Maintaining Isolator – REV17 HPMI-06
| Specifications | |||
| Parameter | Unit | Type A | Type B |
| Center Wavelength (λc) | nm | 1064 | |
| Typ. Peak Isolation | dB | 35 | |
| Min. Isolation, λc, 23 ℃, all polarization states | dB | 28 | |
| Typ. Insertion Loss, 23 ℃ | dB | 0.6 | |
| Max. Insertion Loss, 23 ℃ | dB | 0.8 | |
| Max. Insertion Loss, 23 ℃ (Output to MMF) | dB | None | 0.8 |
| Min. Return Loss (Input/Output) | dB | 50/50 | |
| Min. Extinction Ratio | dB | 20 | |
| Max. Average Optical Power | W | 10 or 20 | |
| Max. Peak Power for ns Pulse | kW | 10 | |
| Max. Tensile Load | N | 5 | |
| Fiber Type | Specified by ordering info | ||
| MMF fiber type | None | Specified by ordering info | |
| Operating Temperature | ℃ | 10 to +50 | |
| Storage Temperature | ℃ | 0 to +60 | |
IL is 0.3 dB higher, RL is 5 dB lower, ER is 2 dB lower and Optical Power is 1W only for each connector added. The connector key is aligned to the slow axis. MMF Port is to take out the backward power from Output.

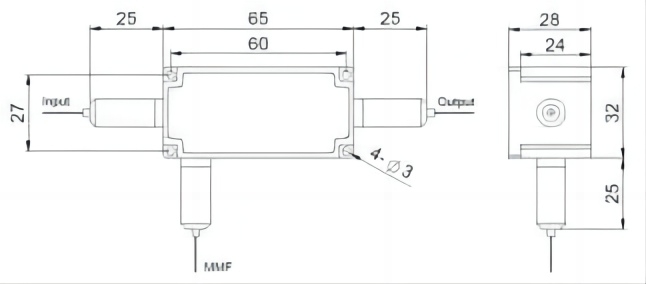

Package Dimensions of High Power Polarization Maintaining Isolator – REV17 HPMI-06
Ordering Information of High Power Polarization Maintaining Isolator – REV17 HPMI-06
HPMI-①-②-③-④-⑤-⑥-⑦-⑧-⑨-⑩
| ①: Wavelength | 06 – 1064 nm, SS – Specify |
| ②: Package Type | A – Type A, B – Type B |
| ③: Handing Power | 10 – 10 W, 20 – 20 W, SS – Specify |
| ④: Connector Type | 1 – FC/UPC, 2 – FC/APC, N – None, S – Specify |
| ⑤: Fiber Jacket | B – Bare fiber, L – 900 μm loose tube, S – Specify |
| ⑥: Fiber Length | 1 – 1.0 m, S – Specify |
| ⑦: Fiber Type for Input & Output | 1 – PM 980 fiber, 2 – FUD-3460 PM10/125 fiber, 3 – PLMA-GDF-10/125-M, S – Specify |
| ⑧: Fiber Type for MMF (for TypeB only) | 1 – HI1060 fiber, 2 – MM-105/125 NA0.22 fiber, S – Specify |
| ⑨: Working Axis | F – Fast axis blocked |
| ⑩: Power Type | P – Pulse application, C – Continuous wave |
