Specifications of SR20462 HPMFSHI-06 200W 20kW PLMA-GDF-30-250 Fiber

Specifications
Parameter	Unit	Value
Center Wavelength (λc)	nm	1064
Max. Insertion Loss at 23 ℃, λc	dB	0.4
Min. Extinction Ratio	dB	20
Typ. Peak Isolation	dB	35
Min. Isolation at  30 ℃	dB	28
Min. Isolation at all temperature	dB	20
Min. Return Loss	dB	50
Nominal Output Beam Diameter (1/e2)	mm	3 ± 0.5
Beam Circularity	%	> 90
M2 Degradation	%	< 10
Max. Average Optical Power	W	200
Max. Peak Power for ns pulse	kW	20
Fiber Type		PLMA-GDF-30/250 NA0.06 fiber
Operating Temperature	℃	10 to +50
Storage Temperature	℃	0 to +60

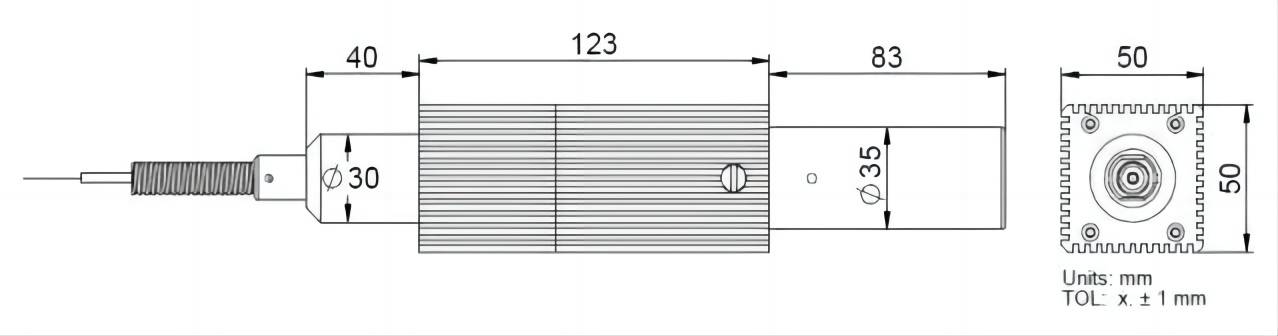

Package Dimensions of SR20462 HPMFSHI-06 200W 20kW PLMA-GDF-30-250 Fiber

Ordering Information of SR20462 HPMFSHI-06 200W 20kW PLMA-GDF-30-250 Fiber

HPMFSHI-①①-②-③-④-⑤-⑥-⑦-⑧

①①: Wavelength		06 – 1064 nm, SS – Specify
②: Handing Power		200 – 200 W, SS – Specify
③: Beam Diameter		3 – 3 ± 0.5 mm, S – Specify
④: Jacket Type		6 – 6 mm Armoured cable, B –  Bare fiber, S – Specify
⑤: Jacket Length		1 – 1.0 m, 2 – 2.0 m, 3 – 3.0 m, S – Specify
⑥: Fiber Length		2 – 2.0 m, 3 – 3.0 m, 4 – 4.0 m, S – Specify
⑦: Working Axis		F – Fast axis blocked
⑧: Power Type		P – Pulse application, C – Continuous wave
