SR30075 PMTC-03 or 06 5W,10kW, PM980 or Nufern 10-125 Fiber
The SR30075 PMTC-03/06 is a high power polarization maintaining isolator (PM isolator) designed for use in ultrafast fiber laser systems. It offers exceptional isolation and power handling capabilities, making it ideal for protecting sensitive laser components from damaging reflected light.
Features of SR30075 PMTC-03 or 06, PM980 or Nufern 10-125 Fiber
- High Average Power Handling
- Broad Wavelength Compatibility
- Excellent Isolation
- Polarization Maintaining (PM)
- Fiber Compatibility
- Selectable Connector Options (PMTC-03 or PMTC-06)
Applications of SR30075 PMTC-03 or 06, PM980 or Nufern 10-125 Fiber
- Material processing
- Laser micromachining
- Ultrafast spectroscopy
- Biomedical imaging
- Telecommunications
Specifications of SR30075 PMTC-03 or 06 5W,10kW, PM980 or Nufern 10-125 Fiber
| Specifications | ||||
| Parameter | Unit | Value | ||
| Center Wavelength | nm | 1030 or 1064 | ||
| Operating Wavelength Range | nm | λc ± 20 | ||
| Configuration | 1 × 2 | 2 × 2 | ||
| Max. Excess Loss | dB | 0.8 | 1.1 | |
| Max. Uniformity (only for 50%) | dB | 0.6 | 0.8 | |
| Tap Ratio | % | 1 ± 0.2, 2 ± 0.4, 4 ± 0.8, 5 ± 1.0, 10, 20 and 50 | ||
| Min. Return Loss | dB | 50 | ||
| Min. Extinction Ratio | dB | 20 | ||
| Max. Average Optical Power | W | 5 | ||
| Max. Peak Power for ns Pulse | kW | 10 | ||
| Max. Tensile Load | N | 5 | ||
| Operating Temperature | ℃ | -5 to +70 | ||
| Storage Temperature | ℃ | -40 to +85 | ||
| Fiber Type | Specified by ordering information | |||
IL is 0.3 dB higher, RL is 5 dB lower, ER is 2 dB lower and Optical Power is 1W only for each connector added.
The connector key is aligned to the slow axis. 2×2 optical path: Input1 to Input2/Tap1, Input2 to Input1/Tap2.

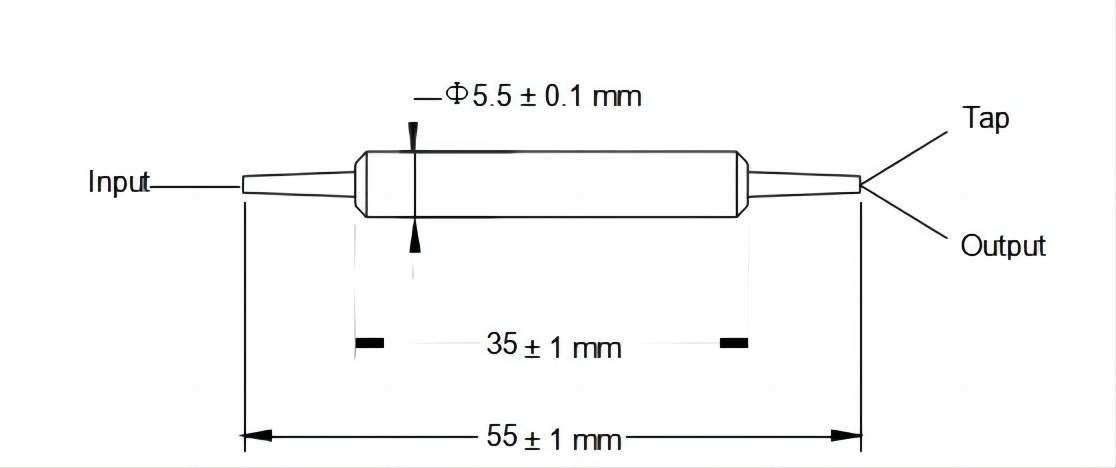

Package Dimensions of SR30075 PMTC-03 or 06 5W,10kW, PM980 or Nufern 10-125 Fiber
Ordering Information of SR30075 PMTC-03 or 06 5W,10kW, PM980 or Nufern 10-125 Fiber
PMTC-①-②-③-④-⑤-⑥-⑦-⑧-⑨-⑩-C
PMTC-①-②-③-④-⑤-⑥-⑦-⑧-⑨-⑩-P
| ①: Wavelength | 03 – 1030 nm, 06 – 1064 nm, SS – Specify |
| ②: Configuration | 1 – 1 × 2, 2 – 2 × 2 |
| ③: Coupling Ratio | 01 – 01/99, 05 – 05/95, 10 – 10/90, 50 – 50/50, SS – Specify |
| ④: Connector Type | 1 – FC/UPC, 2 – FC/APC, 3 – SC/UPC, 4 – SC/APC, N – None, S – Specify |
| ⑤: Fiber Jacket | B – Bare fiber, L – 900 μm loose tube, S – Specify |
| ⑥: Fiber Type for In | 1 – PM980, 2 – FUD-3460, 3 – PM-GDF-10/125-M, S – Specify |
| ⑦: Fiber Type for Out | 1 – PM980, 2 – FUD-3460, 3 – PM-GDF-10/125-M, S – Specify |
| ⑧: Fiber Type for Taps | 1 – PM980, 2 – FUD-3460, 3 – PM-GDF-10/125-M, 4 – HI1060, 5 – 105/125 NA0.22, 6 – FUD- 3584 |
| ⑨: Fiber Length | 1 – 1.0 m, S – Specify |
| ⑩: Working Axis | F – Fast axis blocked |
