Synergistic Applications of Pulse Modulators and AOMs in Laser Systems

Laser technology has become indispensable across a multitude of scientific, industrial, and commercial domains, driving advancements in fields ranging from manufacturing and medicine to telecommunications and fundamental research. A critical aspect of harnessing the full potential of laser systems lies in the precise manipulation of the generated light beam. This necessitates sophisticated control over its temporal and intensity characteristics. Pulse modulators and acousto-optic modulators (AOMs) stand as pivotal components in achieving this level of control. Pulse modulators primarily dictate the temporal structure of the laser output, while AOMs offer versatile capabilities for intensity modulation, high-speed switching, and beam manipulation. This article delves into the synergistic operation of pulse modulators and AOMs within laser systems, highlighting how their combined functionalities enable advanced laser beam control.

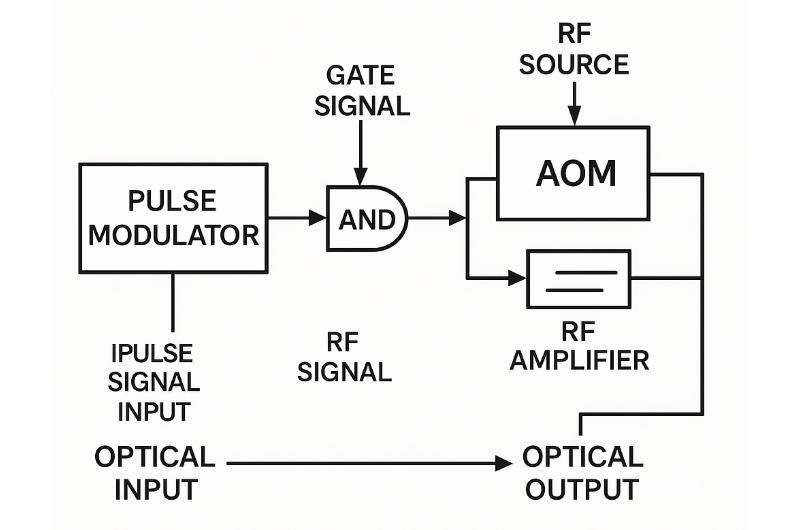

Pulse Modulators and Acousto-Optic Modulators Work Together

Part 1: Fundamentals and Functions of Pulse Modulators

Pulse modulators are essential devices responsible for generating laser output in the form of discrete pulses with defined temporal characteristics. They govern parameters such as pulse duration, repetition rate, and pulse shape, tailoring the laser emission for specific applications. Several types of pulse modulators are commonly employed:
Q-switches: These devices operate by controlling the quality factor (Q-factor) of the laser resonator. By rapidly switching the Q-factor from a low to a high value, a high-intensity, short-duration pulse is generated. Q-switching is widely used for producing nanosecond and sub-nanosecond pulses with high peak powers.
Cavity Dumpers: Employing an active optical switch within the laser cavity, cavity dumpers selectively eject a single, high-energy pulse from the circulating intracavity power. This technique allows for the generation of pulses with higher energy and repetition rates compared to Q-switching in some laser systems.
Directly Modulated Laser Diode Drivers: For lower power applications, the drive current of a laser diode can be directly modulated to produce pulsed output. This method offers simplicity and high repetition rates, often employed in telecommunications and certain sensing applications.

Pulse modulators are fundamental for establishing the fundamental temporal framework of the laser beam, defining when and for how long the laser emits light.

Part 2: Fundamentals and Functions of Acousto-Optic Modulators

Acousto-optic modulators (AOMs) leverage the acousto-optic effect, the interaction between sound waves and light waves in a transparent medium. When a radio frequency (RF) signal is applied to a piezoelectric transducer bonded to an acousto-optic crystal, it generates acoustic waves that propagate through the crystal, creating periodic variations in the refractive index. These refractive index gratings diffract incident light according to Bragg’s law. AOMs offer a versatile range of functionalities:

Intensity Modulation (Amplitude Modulation): By varying the power of the applied RF signal, the efficiency of light diffraction, and consequently the intensity of the diffracted beam, can be precisely controlled. This allows for both analog and digital intensity modulation.
High-Speed Switching: The rapid response time of the acoustic waves enables AOMs to function as high-speed optical switches, capable of rapidly turning the laser beam on and off with nanosecond or even sub-nanosecond rise and fall times.
Beam Deflection: Changing the frequency of the applied RF signal alters the wavelength of the acoustic waves, and thus the grating spacing, leading to a change in the diffraction angle. This allows for controlled deflection of the laser beam.
Frequency Shifting: The diffracted light beam undergoes a frequency shift equal to the frequency of the applied acoustic wave. This frequency-shifted beam finds applications in heterodyne detection and laser cooling.

AOMs excel at providing fast, accurate, and dynamic control over the intensity and direction of the laser beam.

Part 3: How Pulse Modulators and Acousto-Optic Modulators Work Together

In many advanced laser systems, pulse modulators and AOMs are integrated in a serial configuration to achieve sophisticated levels of laser beam control that neither device can accomplish independently. Their combined operation enables a wide array of functionalities:

Pulse Shaping and Precise Control: While the pulse modulator establishes the primary temporal structure, an AOM positioned downstream can further refine the pulse characteristics. For instance, the AOM can be used to truncate the leading or trailing edges of a pulse generated by a Q-switch, resulting in a more precisely defined pulse shape. It can also be employed to introduce amplitude variations within a single pulse.
Pulse Selection and Beam Splitting: When a pulse modulator generates a train of pulses at a specific repetition rate, an AOM can act as a high-speed optical gate to selectively transmit or block individual pulses. This technique, known as pulse picking, allows for the reduction of the laser system’s repetition rate. Furthermore, AOMs can simultaneously generate multiple diffraction orders, enabling the splitting of the laser beam into several beams with controllable intensities, facilitating parallel processing or analysis.
Intensity Modulation and Attenuation (Pulse Amplitude Modulation – PAM): While pulse modulators primarily control the presence and timing of pulses, AOMs provide a means for continuous or discrete control over the intensity of the transmitted pulses. By modulating the RF power applied to the AOM, the amplitude of each pulse can be precisely adjusted, implementing pulse amplitude modulation (PAM). This is crucial for applications requiring variable power delivery or precise dose control.
Integration with Pulse Width Modulation (PWM): Combining a pulse modulator with an AOM allows for sophisticated control over the average laser power through pulse width modulation (PWM). The pulse modulator defines the fundamental pulse repetition rate, while the AOM acts as a fast switch to precisely control the duration (width) of each pulse transmitted. By varying the duty cycle (the ratio of pulse duration to the pulse period) using the AOM, the average power delivered to the target can be accurately adjusted without changing the peak power of individual pulses.
Integration with Pulse Frequency Modulation (PFM): While the pulse modulator typically sets the base pulse repetition rate, in certain advanced configurations, the repetition rate itself can be dynamically varied, implementing pulse frequency modulation (PFM). An AOM can be synchronized with these frequency changes to provide simultaneous control over pulse intensity or other beam parameters, enabling complex temporal and intensity patterns.

Part 4: Application Examples of Synergistic Operation

The synergistic operation of pulse modulators and AOMs underpins numerous advanced laser applications:

Material Processing: In precision laser cutting, marking, and welding, the combination allows for intricate control over the energy deposition. The pulse modulator defines the pulse duration and repetition rate for efficient material ablation, while the AOM can rapidly switch the beam on and off or modulate the pulse intensity to achieve high-quality and precise processing.
Precision Measurement: In lidar (Light Detection and Ranging) and laser rangefinding, short pulses generated by a pulse modulator, coupled with the fast switching and intensity control of an AOM, enable accurate time-of-flight measurements and high spatial resolution.
Laser Displays: High-speed switching and intensity modulation capabilities of AOMs, often used in conjunction with pulsed lasers, are crucial for creating dynamic and vibrant laser projections in entertainment and scientific visualization.
Optical Communication: In high-speed optical communication systems, pulse modulators generate the optical data carriers, while AOMs can be employed for fast switching and intensity modulation to encode and transmit information.
Scientific Research: In ultrafast laser spectroscopy and quantum optics, the precise temporal shaping and intensity control afforded by the combined use of pulse modulators and AOMs are essential for manipulating and probing matter at extremely short timescales.

In Summary

The collaborative integration of pulse modulators and acousto-optic modulators represents a powerful approach to achieving advanced control over laser beam characteristics. Their synergistic operation enables precise manipulation of pulse timing, repetition rate, intensity, and even beam direction, unlocking a wide range of sophisticated applications across diverse fields. The ability to implement pulse frequency modulation, pulse amplitude modulation, and pulse width modulation through their combined functionalities further enhances the versatility and precision of laser systems.
