What Is Q-switching Used For?
In the field of laser technology, the Q-switch is like a precise “laser pulse gate”, which converts continuous laser into high-energy short pulses by rapidly modulating the Q value of the resonant cavity. This acousto-optic Q-switch is placed inside the laser resonant cavity. When the laser is pumped, the RF input of the AOM is turned on because the diffraction loss of the light circulating in the resonant cavity is very high (as the diffracted beam leaves the resonant cavity), and the laser is suppressed. When the RF input is suddenly turned off, a strong laser pulse will be generated. Why can this technology become a core component in industrial processing, medical aesthetics, and even nuclear fusion experiments? The technical logic and cutting-edge developments behind it are worth in-depth exploration.
Core Technical Principle Of Q-switch
The differentiated competition between active and passive Q-switches
Q-switches can be classified into active and passive types, and their selection directly determines the upper performance limit of the laser system.
Active Q-switches (such as electro-optic modulators) precisely control the switch timing through external signals and are suitable for scenarios with high repetition rates (above kHz), but they are relatively expensive.
Passive Q-switches (such as Cr:YAG crystals) rely on saturable absorption effects, have a simple structure and do not require a driving power supply, but their pulse stability is limited by material properties.
Fundamental physical mechanisms
The Q-switch achieves pulse output by controlling the quality factor Q value of the laser resonator. Its core process can be divided into three stages:
- Energy storage stage: The Q value is actively suppressed, and population inversion continues to accumulate (typical gain media such as Nd:YAG can store energy up to 1 J/cm³).
- Switch trigger: The Q value suddenly increases within nanoseconds (the response time of electro-optical switches can be as short as 2ns).
- Pulse release: Stored energy is released in the form of short pulses (with a pulse width compression ratio of up to 10⁶ times).
Key parameters determine the application boundary
- The switching speed (nanosecond response) affects the pulse width.
- The damage threshold (such as > 500 MW/cm²) restricts the maximum output power.
- Insertion loss (< 5%) is related to system efficiency.
- These parameters jointly define the applicable scenarios of Q-switches – for instance, microsecond-level switches cannot meet the demands of ultrafast lasers.
High-quality sound and light Q-switches have the following important characteristics:
- The loss in the “off” state is extremely low, which can maximize the output strength
- It can withstand extremely high peak laser power
- Outstanding sensor reliability allows for long-term use without maintenance
Typical Application Scenarios
1. Industrial precision processing
In the processing of air film holes in aero engine blades, short pulses of 10-100ns of Q-switched lasers can reduce thermal diffusion and achieve hole diameter accuracy of ±5μm. Compared with continuous laser, its material removal efficiency is increased by more than three times. The cooling holes of the turbine blades of the Boeing 787 engine are processed by Q-switched fiber laser (IPG YLS-2000). Key technical parameters:
Pulse energy: 1 mJ @ 20 kHz
- Position accuracy: ±3 μm (5 times better than traditional electrical discharge machining)
- Processing efficiency: 800 holes per minute
- Technical challenge: Focus drift caused by heat accumulation at high repetition frequencies requires real-time correction in conjunction with an adaptive optical system.
2. Medical aesthetics
Dermatology: Q-modulated Nd:YAG laser (pulse width 6-20ns) selectively destroys melanin, while the temperature rise of the surrounding tissues is less than 1℃.
Ophthalmology: In LASIK surgery, the μ s-level precision of the active Q-switch can prevent excessive corneal ablation.
3. Research purposes

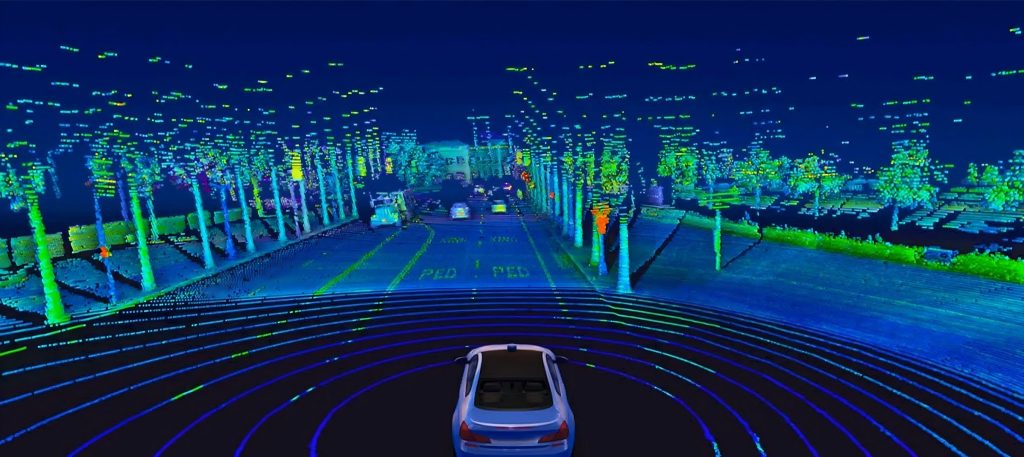

Lidar: The MHz repetition rate of the acousto-optic Q-switch facilitates real-time imaging in autonomous driving.
Inertial confinement nuclear fusion: By stacking multiple Q-switches, laser pulse shaping with nS-level pulse width and KJ-level energy is achieved.
Technical Bottlenecks And Innovation Paths
Current technological limits
Power bottleneck: The maximum power that commercial electro-optical Q-switches can withstand is less than 50 MW
Speed limit: The switch delay of the acouste-optic modulator is ≥5 ns (restricted by the speed of sound wave transmission)
Breakthrough technological progress
Two-dimensional material
Graphene/black phosphorus heterojunction saturable absorber
Damage threshold: 8.7 GW/cm²
Recovery time: < 500 fs
All-fiber integrated solution
The on-chip Q-switch developed by MIT in the United States:
Size: 0.5×0.5 mm²
Insertion loss: < 0.2 dB
Compatible with silicon photonics mass production processes

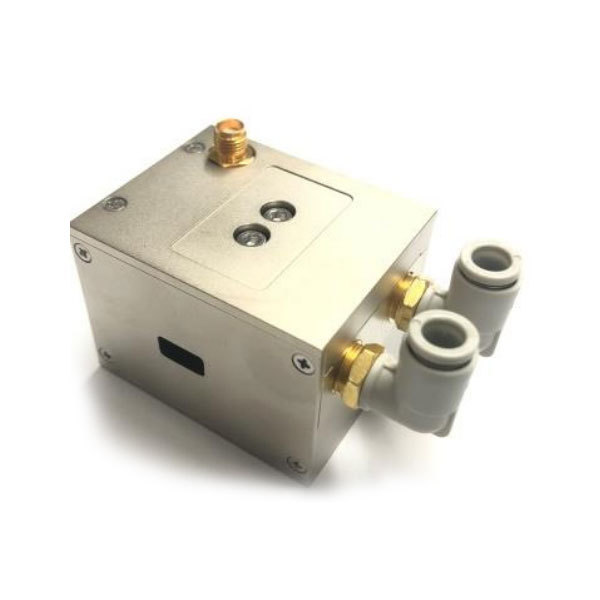

Acousto-optic Modulator q-switch Selection Recommendations
The selection of a Q-switch directly affects the performance, reliability, and cost of the laser system. Different application scenarios have strict requirements on parameters such as pulse width, repetition rate, and peak power. Therefore, the following key factors must be considered when selecting a Q-switch:
Clarify the application requirements
Before selecting the model, it is essential to clearly define the core requirements of the laser system:
Pulse width
ns grade (1-100ns) : Suitable for material processing, lidar, and medical aesthetics (such as Q-switched Nd:YAG lasers).
ps/fs grade: Ultrafast laser micro-processing, scientific research experiments (requiring the combination of mode-locking technology).
Repetition frequency
Low repetition rate (1-100Hz) : High-energy lasers (such as laser ignition, laser cutting).
High repetition rate (kHz-MHz) : Precision machining (such as PCB drilling), lidar.
Peak power
<10MW: Medical, low-power industrial applications (passive Q-switches can meet the requirements).
>10MW: High-energy laser (requires active Q-switching or a hybrid solution).
Active vs. Passive Q-switch
| Characteristics | Active Q switch | Passive Q-switch |
| Control mode | Triggered by external electrical/acoustic signals | The saturable absorber is automatically triggered |
| Switch speed | Fast (1-10ns | Slower (10-30ns |
| Repetition frequency | High (kHz-MHz | Low (Hz-kHz |
| Stability | High (timing controllable | Affected by the properties of the material |
| Cost | Higher (requires a drive circuit) | Lower (no external control required |
| Typical applications | Lidar, precision machining, scientific research | Medical aesthetics, low-cost industrial lasers |
Selection suggestion:
- Need precise timing control? Select the active type (such as electro-optic/acousto-optic modulator).
- Limited budget and not very demanding on stability? Choose the passive type.
- Need to balance high power and high repetition rate? Hybrid type (such as acousto-optic + saturable absorber).
Material and damage threshold considerations
The damage threshold of the Q-switch (unit: MW/cm² or GW/cm²) determines the maximum laser power it can withstand:
- Low power (<1MW) : Semiconductor saturable absorption mirrors are sufficient.
- Medium and high power (1-100MW) : electro-optic crystals (such as LiNbO₃), acousto-optic modulators (such as TeO₂).
- Ultra-high power (>100MW) : Special coating or new materials (such as graphene saturable absorbers) are required.
Note: Long-term high-power operation may cause thermal lensing effect and needs to be optimized in conjunction with the cooling system.
System integration and maintenance costs
Modular design: Commercial Q-switches typically offer plug-and-play solutions, which are suitable for rapid integration.
Maintenance cost
Active Q-switches need to be calibrated regularly (such as the half-wave voltage drift of the electro-optic crystal).
The lifespan of the passive Q-switch depends on the degradation of the saturable absorber (for example, Cr:YAG approximately 10⁸ pulses).
Conclusion: The sustainable Challenges of Technological iteration
As ultrafast lasers advance into the attosecond domain, Q-switching technology is facing the demand for collaborative innovation in materials physics and optical engineering. Industry experts predict that after 2025, new types of Q-switches based on topological insulators may break through the existing theoretical limits. For practitioners, understanding the Q-switch is not only about mastering a device, but also the key to grasping the evolution of laser technology.
