Fiber AOMs in Optical Coherence Tomography (OCT): Medical Imaging Breakthroughs

OCT is the original, noninvasive, high-resolution technology in biomedical imaging’s fast-evolving world that is transforming ophthalmology, cardiology, and beyond. Its heart is one key element: Acousto-Optic Modulators (AOMs). Fiber AOMs in particular have reshaped the paradigm of OCT system performance, flexibility, and miniaturization – this article explores their profound impact as groundbreaking innovations in medical imaging research.

What is Optical Coherence Tomography (OCT)?

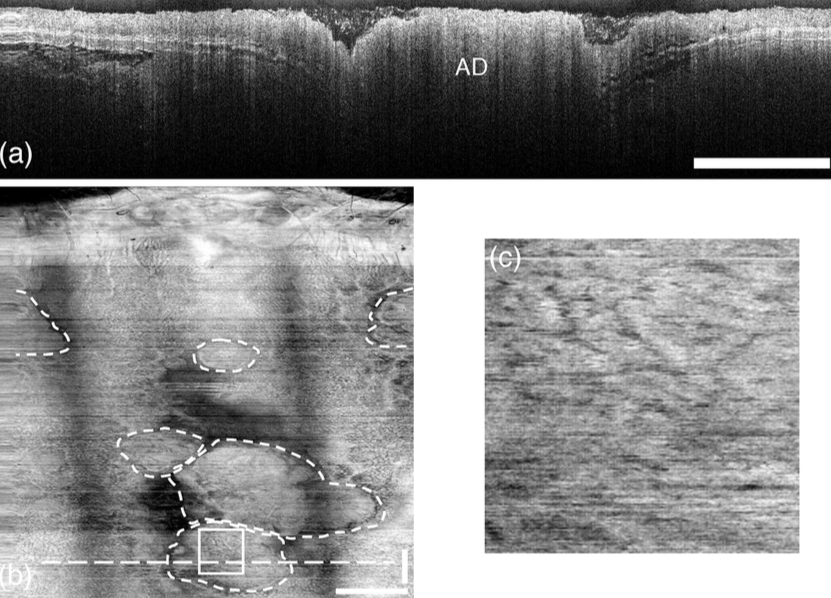

Optical Coherence Tomography (OCT) is a sophisticated, non-invasive imaging method that uses light waves to capture high-resolution, cross-sectional images of biological tissue—similar to ultrasound but with much higher resolution. OCT provides micrometer-scale 2D and 3D images in real time by measuring the echo time and intensity of backscattered light, thereby becoming immensely useful in medical diagnosis.

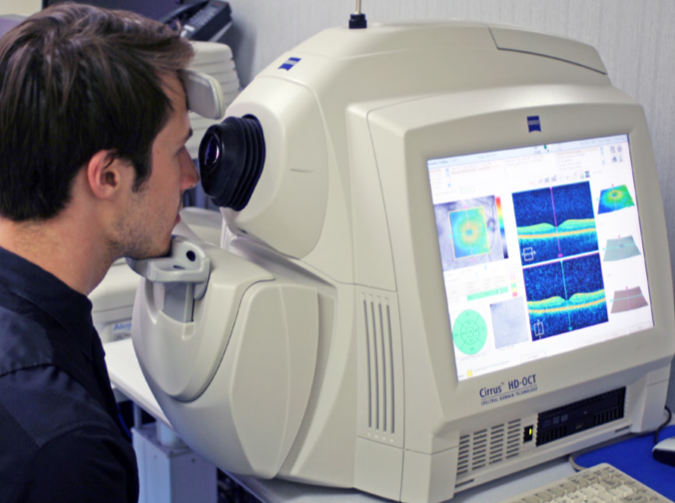

OCT technology has been known to be beneficial for eyecare for some time; OCT enables close imaging of retinal layers for the early detection of diseases such as glaucoma and macular degeneration. Outside of eyecare uses, though, OCT is also used for several other uses outside of eye health, including:

• Cardiology – Imaging blood vessels to determine plaque buildup is utilized by cardiology doctors as an early screening examination for heart attacks or strokes.
• Dermatology – Detection of skin cancer and monitoring of treatment routines.
• Oncology – Accurate guidance of biopsies and tumor margin evaluation.
• Dentistry – Assessment of tooth anatomy and gums.

OCT equipment relies on very high precision light modulation, and Acousto-Optic Modulators (AOMs) facilitate improved performance by managing beam properties. Thanks to innovations like Fiber AOMs, OCT is advancing medical imaging by delivering faster diagnosis with reduced patient discomfort.

What is the Role of Acousto-Optic Modulators (AOMs) in OCT?

Acousto-Optic Modulators (AOMs) are indispensable components in Optical Coherence Tomography (OCT) equipment, providing precise control over the characteristics of light for enhancing imaging performance. AOMs utilize high-frequency sound waves to interact with laser beams in a manner that they enable three major functions within OCT:

• Frequency Shifting – Advanced optical microscopie devices offer highly controlled Doppler shifting of the light beam, essential for Doppler shift-sensitive OCT and Doppler OCT technologies to measure blood flow velocity with precision and identify subtle changes to tissue motions at ultrahigh sensitivity simultaneously. This offers the ability to measure blood velocity as well as identify slight motion of tissue at high sensitivity.
• Beam Deflection and Scanning – AOMs switch laser wavelength in Swept-Source OCT (SS-OCT) rapidly, facilitating rapid depth scanning with real-time volumetric imaging essential to applications such as retinal diagnostics and intravascular imaging. Real-time volumetric imaging facilitates real-time volumetric imaging essential to applications such as retinal diagnostics and intravascular imaging.
• Intensity Modulation and Noise Reduction – Dynamically varying light intensity with Advanced Optics Modules improves signal-to-noise ratio by reducing backreflections and interferences that would otherwise create fuzzy, out-of-focus images. As a result, AOMs produce clearer images with higher contrast levels that provide detailed, clear information.

Why Fiber AOMs are Important for OCT?

OCT technology continues to evolve at a breathtaking speed, with increasing demands for increased speed, greater stability, and compact system design. Among the critical components that make such development possible is an Acousto-Optic Modulator (AOM), used in optical frequency shifting, control of a mid-path, and improving image accuracy. Early OCT systems utilized traditional bulk AOMs with free space optics or crystal materials as the modulating mechanism; although effective, these components were found to be alignment sensitive or bulky for modern miniaturized OCT applications.

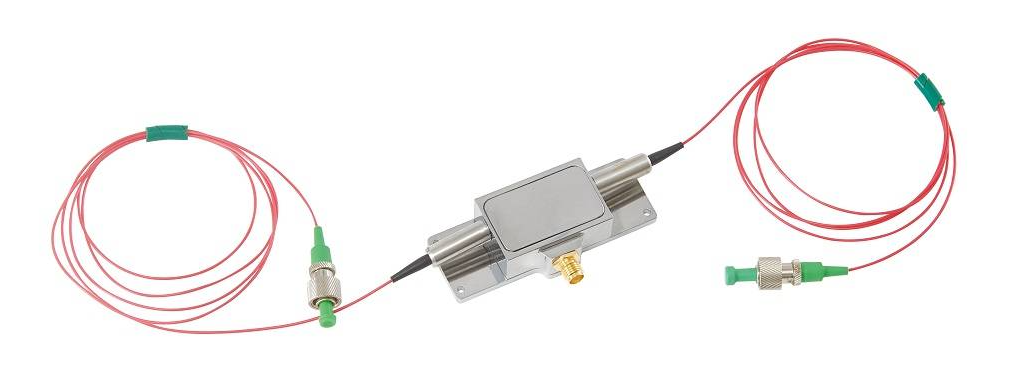

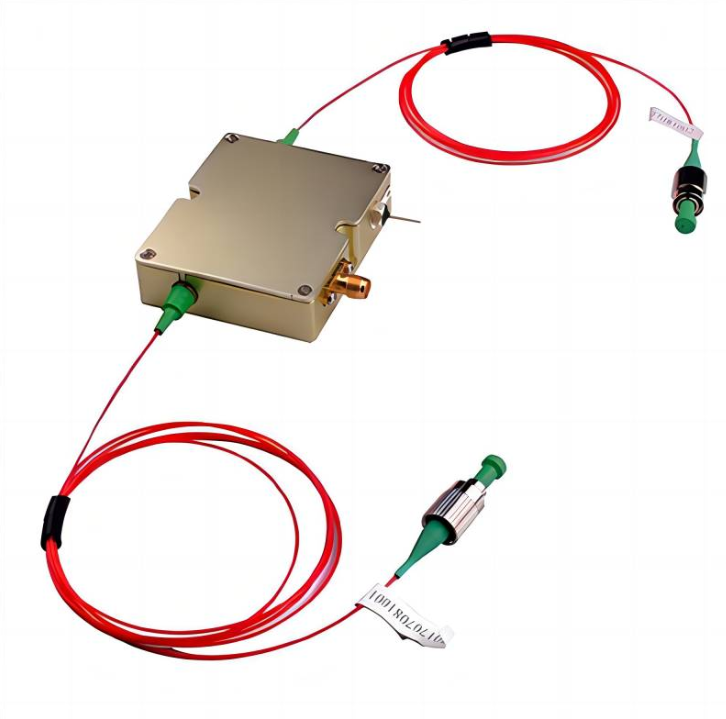

Acousto-Optic Modulators (Fiber AOMs) have a wonderful advantage. Compared to their bulk counterpart, Fiber AOMs can be directly integrated within the optical fiber for OCT systems but still retain some technical and practical benefits. This creates technical and economic benefits for both system operators and patients.

Advantages of Fiber AOMs over Bulk AOMs

AOMs from fiber acousto-optics offer significant performance advantages that render them a central component of modern OCT imaging systems. Their fiber-based design lends them to straightforward integration into such imaging systems without system architecture complication or contribution to alignment problems and minimizing insertion losses; their in-line fiber coupling preserves signal integrity while streamlining system design.

Fiber AOMs offer enhanced phase stability, which is an essential characteristic for Doppler OCT and phase-sensitive measurements. Fiber AOMs offer superior noise suppression compared to their bulk AOM counterparts in order to offer more enhanced images for dynamic tissue characterization and ultrafast modulation (MHz-range), such as in real-time surgical guidance and cardiovascular imaging applications involving high-speed swept-source OCT.

Fiber AOMs possess the advantage in miniaturization, and so miniaturized OCT systems are more commercially available for handheld and endoscopic use than ever. Their negligible optical loss preserves signal-to-noise ratio (SNR), providing higher diagnostic accuracy during retinal scans, tumor margin imaging, and microvascular imaging studies. And along with speed, stability, unbroken fiber compatibility, fiber AOMs are leading the next generation of OCT advancement in medical diagnostics!

Impact on Medical Imaging

The application of fiber AOMs has contributed directly to a series of OCT breakthroughs:

• Enhance Retinal Imaging: Better phase stability allows for glaucoma and macular degeneration detection in an earlier stage.
• Intravascular OCT at High Speed: Faster modulation allows real-time imaging of arterial plaques during cardiac intervention.
• Accurate Cancer Diagnostics: Reduction of noise and increased resolution allow for better tumor margin evaluation in biopsies.
• Neurological Use: Stable Doppler imaging may help researchers by monitoring cerebral blood flow for stroke research.

By shattering the bulk AOM speed barriers, fiber AOMs are now the backbone of next-generation OCT systems, giving rise to innovations in non-invasive medical imaging. Continued development promises even greater speed, resolution, and clinical utility.

What are the Key Applications of Fiber AOMs in OCT?

The integration of Fiber Acousto-Optic Modulators (Fiber AOMs) is expanding the capabilities of Optical Coherence Tomography across a range of clinical and research applications. Their compact size, stability, and compatibility with fiber-based systems make them particularly valuable in both established and emerging areas of OCT.

1. Ophthalmology: Fiber AOMs enhance Doppler and phase-sensitive OCT for high resolution imaging of retinal layer anatomy, vascular flow, and earliest stage diagnosis of glaucoma and macular degeneration.
2. Cardiology: In catheter-based OCT, Fiber AOMs enable high resolution intravascular imaging for assessing plaque anatomy and artery condition, aiding coronary artery disease diagnosis and treatment.
3. Oncology: OCT systems support real-time monitoring of tumor margins during surgery, promoting precise cancer therapy with less risk of recurrence.
4. Dermatology: Fiber AOMs support noninvasive imaging of skin, allowing physicians to evaluate lesions, monitor treatment response, and detect signs of skin cancer at an early stage without the use of biopsy methods.
5. Neuroscience: Phase-sensitive OCT supported by Fiber AOMs is a precious tool in brain imaging, offering new research and diagnosis possibilities in neuroscience research and diagnosis.

These applications highlight that Fiber AOMs do not only improve OCT performance but are also a critical component to making their utilization possible in places where traditional bulk components cannot travel. From clinics to operating rooms, their role is the solution to making high-resolution imaging more portable, accessible, and efficient.

To Conclude

Fiber AOMs represent an impressive advancement in OCT technology, boasting compact size, superior stability, and faster modulation than bulk AOMs. When integrated into medical OCT systems, they increase imaging precision for breakthroughs in fields like ophthalmology, cardiology, and cancer diagnostics.

As OCT continues to advance, fiber AOMs will play an increasingly crucial role in noninvasive high-resolution medical imaging and will pave the way for new clinical applications and better patient outcomes.
