Top Considerations When Buying a Fiber AOM

If you’re working with lasers, you know how crucial precise control is. A fiber acousto-optic modulator (AOM) gives you that control, letting you adjust laser beams quickly and accurately. But with so many options out there, how do you pick the right one?

This guide cuts through the technical jargon and gives you straightforward advice on selecting a fiber AOM that fits your needs—whether you’re setting up a lab experiment, working in telecom, or running an industrial laser system.

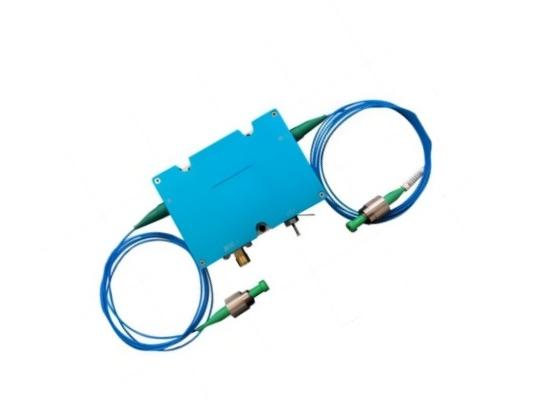

What Is a Fiber AOM?

A fiber AOM is equivalent to a high-speed switch for laser light traveling through an optical fiber. Instead of using mechanical parts, it uses sound waves to modulate the laser beam. It’s quicker and more reliable than mechanical shutters.

Where You’ll See Fiber AOMs in Action

Laser labs: Quickly switching laser pulses on/off for experiments
Telecom networks: Controlling signal power in fiber-optic communications
Medical devices: Controlling laser power in surgical devices
Manufacturing: Adjustable laser intensity precision cutting

The big advantage over conventional AOMs? Fiber AOMs integrate directly into your fiber system, meaning you don’t have to worry about laser beam alignment becoming non-critical over time.

What Makes a Good Fiber AOM?

An effective fiber AOM must combine superior optical performance, stable modulation characteristics and long-term reliability.

As part of your evaluation criteria for AOMs, one key quality to look out for is diffraction efficiency: this measures how efficiently an AOM transfers energy from its input beam into its modulated output beams. Top performing fiber AOMs generally boast diffraction efficiencies of at least 80% or higher to maximize usable optical power and deliver maximum usability.
Low insertion loss is another essential feature. Insertion loss refers to how much light passes through an AOM modulator without transmitting its signal through. Quality fiber AOMs strive for an insertion loss below 1dB so as to preserve laser beam integrity; small losses in sensitive applications could still impact system performance significantly.
Polarization maintenance is essential in systems utilizing coherent detection or other polarization-sensitive components, so an AOM that integrates single mode or polarization-maintaining (PM) fibers depending on your setup is an integral element to keeping this important parameter under control.
High-speed applications necessitate fiber AOMs with wide modulation bandwidths and fast rise/fall times to accommodate modulations frequencies between 10MHz to hundredsMHz and response times as fast as 10ns for optimal operation.
Last but not least, a robust mechanical design featuring standard fiber connectors (such as FC/APC ) facilitates integration and reliable performance in real world settings. An AOM should be compact yet thermally stable for continuous operations ensuring reliable service life over time.

Key Factors to Consider When Buying Fiber AOM

When purchasing a fiber AOM or a fiber coupled AOM, it is essential to listen to the specs that have the most impact on your system’s reliability and performance. The four most important aspects to remember are:

1. Wavelength Compatibility

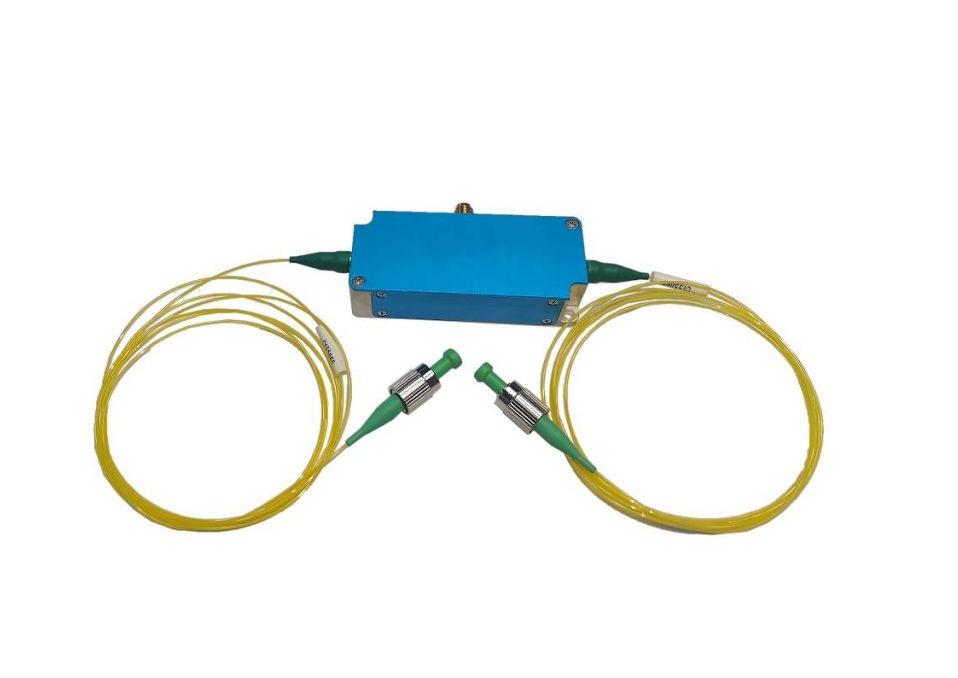

Every fiber AOM is designed to operate optimally within a specific wavelength range. Using an AOM that matches your laser’s wavelength (e.g., 780 nm, 1064 nm, 1550 nm) ensures high diffraction efficiency and minimal loss. If the wavelength falls outside the AOM’s design range, performance can degrade significantly, leading to lower output power and poor modulation. Make sure to confirm both the central wavelength and bandwidth tolerance when selecting your device.

2. Diffraction Efficiency and Insertion Loss

Insertion loss is a measure of the lost optical power as light travels through the AOM. Lower insertion loss (typically <1 dB) is desirable for preserving signal intensity. This is complemented by diffraction efficiency, which tells you what fraction of the optical signal is indeed modulated by the device successfully. Higher diffraction efficiency (typically 75–90%) ensures more power reaches the intended output port, a requirement in power-sensitive applications like quantum optics or spectroscopy.

3. Bandwidth and Modulation Speed

The speed of the fiber AOM switching or modulating the light is crucial for time-sensitive or high-speed applications. This is largely determined by the RF drive frequency and the acoustics of the material used in the AOM. Look for a fiber AOM with a wide modulation bandwidth (e.g., >80 MHz) and fast rise/fall times (down to 5–10 ns) if your application requires fast signal switching, pulse shaping, or high-frequency modulation.

4. Fiber Type and Connector Compatibility

Ensure that the AOM will be compatible with your system’s fiber type—single-mode (SM), polarization-maintaining (PM), or multimode. Additionally, ensure the connector types, e.g., FC/APC or FC/PC, are compatible with your components on hand. Incompatible connectors or fiber types add undesired losses, reflections, or polarization mismatches. Compatible fiber and connector matching allows for smooth integration and optimum optical performance.

By focusing on these four key points, you can select a fiber AOM that delivers stable, high-quality modulation without introducing any integration problems in your optical system.

Customize Fiber AOM For Your Specific Laser System

While many fiber AOMs come in standard configurations, certain applications demand tailored solutions to meet precise system requirements. Customizing a fiber coupled AOM ensures optimal performance, better integration, and long-term reliability in your specific setup.

One of the most common customization options is wavelength tuning. If your laser operates at a non-standard wavelength, manufacturers can apply specialized anti-reflection coatings to the internal optics to match your exact laser line, improving efficiency and reducing unwanted losses.

Fiber type customization is also important. Depending on your system, you may need single-mode, polarization-maintaining (PM), or even specialty fibers. Matching the fiber type ensures proper signal propagation and maintains beam quality, especially in polarization-sensitive applications like interferometry or quantum experiments.

In addition, you can request custom connector types such as FC/APC, SC/APC, or even bare fiber pigtails, which help integrate the AOM seamlessly into your optical system without the need for additional adapters.

For high-power laser systems, enhanced thermal management—like integrated heat sinks or water-cooling options—can be added to ensure stable operation.

Working with a manufacturer that offers flexible customization allows you to build a fiber AOM perfectly suited to your laser’s specifications and your application’s unique demands.

The Final Thought

Investing in the right fiber AOM or fiber-coupled AOM hinges on understanding the interplay between optical specifications, RF requirements, and environmental constraints. Prioritize devices with proven diffraction efficiency, low insertion loss, and robust thermal management. Don’t overlook the value of customization—tailoring coatings, connectors, and cooling to your system can unlock peak performance. With these considerations in mind, you’ll ensure precise, reliable modulation for any fiber-optic laser application.
