How NASA Uses Fiber Optic Delay Lines for Deep Space Communication
Deep space communication is one of the biggest challenges facing NASA, and it requires advanced technologies to ensure precise data transmission across long distances. The fiber optic delay line is one of those technologies and a significantly crucial component in signal processing and synchronization. This article explains how NASA uses fiber optic delay lines to enhance deep space communication, the advantages they have over traditional methods, and their continued application in space exploration.
What Are Fiber Optic Delay Lines?

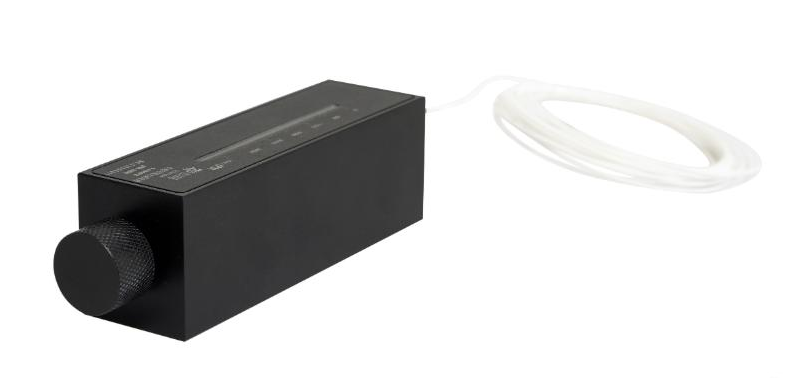

An optical fiber delay line is a device that retards the advance of light signals by transmitting them through a meticulously computed length of optical fiber. Since light travels at a fixed speed in the fiber — slower than in a vacuum — the longer the fiber, the larger the delay that’s imparted. By carefully controlling this length, engineers can create very accurate, reliable time delays for optical signals.
These can range from a few meters of fiber to a few kilometers, often neatly wound up to conserve space. As they rely on the intrinsic properties of light propagation rather than active electronics, fiber optic delay lines offer excellent stability, low signal loss, and freedom from electromagnetic interference.
In the case of high-precision applications such as deep space communications, the ability to control timing to fractions of a nanosecond is invaluable. Fiber optic delay lines essentially act as “optical buffers,” ensuring that signals arrive precisely on time, and simplifying synchronization, calibration, and testing across complex communication systems.
What are the Difficulties of Deep Space Communication?
Communication across the millions of miles of space has unique engineering demands. Earth-based networks do not need to deal with:
- Extreme Signal Degradation – With the signals traveling millions of miles, they weaken to the point that ultra-sensitive receivers and high-power transmitters must be employed in order to maintain data integrity.
- Gigantic Communication Delays – Due to speed of light limitations, Mars communications take between 5 to 20 minutes to reach Earth, making real-time control impossible and requiring autonomous spacecraft systems.
- Interference & Noise – Cosmic radiation, solar flare events, and background electromagnetic noise can ruin transmissions, necessitating advanced error-correction techniques.
- Limited Bandwidth – High-definition images, scientific data, and telemetry need to be efficiently encoded so that they can make the best possible use of available bandwidth without suffocating deep space networks.
- Doppler Shift Distortion – The tremendous speeds of spacecraft result in frequency shifts in outgoing signals, which must be calibrated continuously lest data be lost.
These needs push NASA beyond traditional radio-frequency solutions and provide novel solutions like the fiber optic delay lines for precise signal alignment and laser communications for higher data rates.
How NASA Utilizing Fiber Optic Delay Lines?
NASA integrates fiber optic delay lines into its deep space communication infrastructure to achieve the precise timing needed for mission success. In deep space operations, even tiny timing discrepancies can lead to navigation errors, signal distortion, or data loss. Fiber optic delay lines help eliminate these risks by introducing predictable, highly stable delays into the signal path.
- One primary use is mission simulation and testing. Before a spacecraft ever launches, NASA engineers replicate the exact communication conditions it will face — including the minutes-long delays between sending and receiving signals. By running signals through long spools of optical fiber, they can mimic interplanetary transmission times with nanosecond accuracy.
- Another critical role is calibrating antennas and receivers in the Deep Space Network (DSN). These massive antennas must be perfectly aligned and synchronized to decode the faint signals from distant spacecraft. Fiber optic delay lines allow engineers to adjust for timing offsets during calibration, ensuring the entire system operates in unison.
- They also play a part in laser communication experiments, where maintaining phase stability is essential for transferring data at extremely high rates. By fine-tuning signal timing, fiber delay lines help stabilize optical links, improving reliability and reducing errors.
In short, NASA uses fiber optic delay lines not as passive components, but as precision tools for controlling time itself in the unforgiving environment of deep space communication.

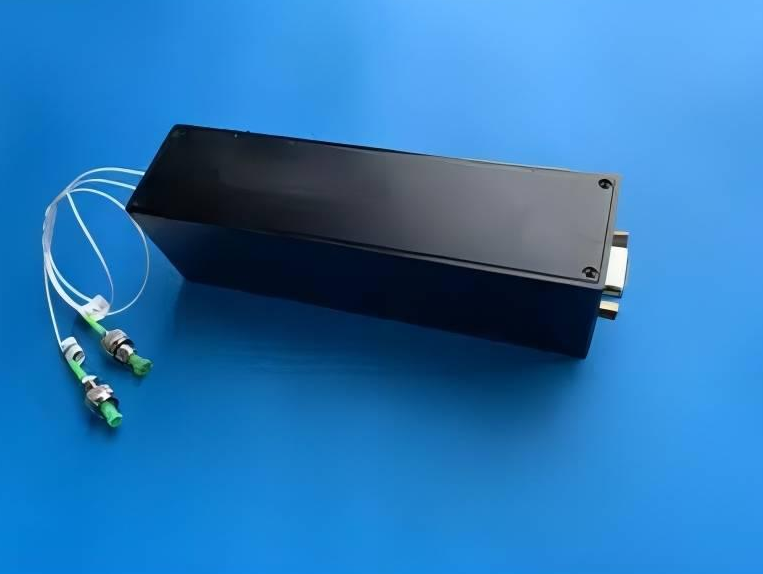

Advantages of Fiber Optic Delay Lines Over Traditional Methods
In deep space communication, fiber optic delay lines (FODLs) provide critical advantages over conventional radio-frequency (RF) delay systems. NASA, along with other space agencies, makes increasing use of this technology since it possesses superior performance in some key areas:
1. Signal Timing Accuracy: FODLs achieve nanosecond-level accuracy in signal delay, far superior to the microsecond-level precision of RF-based delay lines. This ultra-high accuracy is invaluable in synchronizing signals for NASA’s Deep Space Network (DSN), where even minimal timing errors would corrupt data from distant spacecraft.
2. Signal Integrity & Noise Immunity: In contrast to RF systems, which are beset by electromagnetic interference (EMI) and signal degradation, fiber optics are immune to EMI and experience minimal signal loss. This allows for cleaner data transmission, which is critical with weak signals being transmitted billions of miles.
3. Higher Bandwidth for Data-Hungry Missions: Modern space missions demand high-data-rate transfers for 4K video, high-resolution images, and scientific telemetry. FODLs support multi-gigabit laser communication (LCRD), while traditional RF systems are limited by bandwidth.
4. Small but Mighty: Light, Compact, and Power-Efficient: Fiber optic delay lines are lighter and more compact than bulky coaxial RF delay systems, making them ideal for spacecraft where weight and space are in limited supply. They also consume less power, a critical factor for extended missions.
5. Future-Proofing Next-Generation Space Technology: As NASA drives quantum communication and interplanetary internet, FODLs provide the low-latency, high-fidelity signal control that will be needed in tomorrow’s space networks.
By adopting fiber optic delay lines, NASA ensures faster, more reliable, and interference-free communication—key factors in successful deep space exploration. This makes FODLs an essential technology for current and future missions, securing their place in modern space communication systems.
More Applications of Fiber Optic Delay Lines in Space Exploration
While their use in deep space communication is crucial, fiber optic delay lines are also profoundly influencing many other space exploration-related applications. They are precise, reliable, and immune to interference, making them valuable instrumentation in a wide range of high-tech applications:
Planetary Radar Mapping – Delay lines are used to control the timing of radar pulses beamed onto planetary surfaces. By controlling the delay between receive and transmit signals, researchers can produce detailed maps of terrain, examine surface composition, and determine subsurface features.
Astronomical Interferometry – The synchronization of light from a number of telescopes requires perfect synchrony. Fiber optic delay lines are used to compensate for light path length variations, enabling astronomers to create higher resolution images of stars, galaxies, and exoplanets.
Quantum Communication Experiments – As space agencies explore secure quantum data links, fiber delay lines are used to accurately control single-photon arrival times. Such precision yields accurate quantum key distribution between satellites and Earth.
Satellite Laser Ranging – Establishing the exact range to satellites or moon reflectors calls for precise timing. Delay lines help correlate transmitted and back laser pulses for centimeter-resolution measuring accuracy.
Navigation and Autonomous Systems – Fiber delay lines onboard next-generation rovers and space vehicles can be utilized to synchronize sensors, cameras, and communications systems for increased autonomy and navigation accuracy.
From capturing alien worlds to enabling the next generation of secure communication, fiber optic delay lines are proving to be a versatile device far greater than their original purpose.
NASA’s adoption of fiber optic delay lines marks a significant leap in deep space communication. By improving signal synchronization, reducing noise, and enabling high-bandwidth optical links, this technology ensures seamless data transmission across the cosmos. As space exploration advances, fiber optic delay lines will play an even greater role in interplanetary missions, satellite networks, and beyond.
