PON vs. Ethernet: Technical Advantages and Application Logic of Passive Optical Components
As demand for 5G backhaul and gigabit broadband surges, the traditional Ethernet copper cable matrix is reaching its physical limits. According to the Omdia 2024 report, optical network equipment will account for over 40% of operators’ CAPEX for the first time, with the cost-effectiveness of passive optical components becoming a key driver. This technology approach, which relies on physical optical properties rather than electronic signal processing, is disrupting the classic switch-centric network architecture, with implications far beyond simply replacing cables.
Passive Optical Components: The Silent Cornerstone of PON Architecture
The core value of passive optical devices lies in zero-energy signal distribution. From the first fused-taper splitter developed by Bell Labs in the 1970s to today’s planar lightwaveguide (PLC) technology, their underlying physical principles are:
- Optical power division law: Splitters distribute optical energy proportionally through fused silica waveguides
- Wave interference effect: WDM devices use Bragg gratings to separate wavelengths
- Total internal reflection principle: Fiber connectors use precise end face angles (APC-8°) to minimize return loss
In the field of optical communications, passive optical devices refer to components that manipulate optical signals solely through their physical properties. They primarily fall into three categories:
- Optical splitters: Split a single input optical signal into multiple output channels (commonly 1:32/1:64).
- Wavelength division multiplexers (WDMs): Use wavelength division to achieve bidirectional transmission on a single fiber.
- Fiber connectors: Low-loss mechanical optical interfaces.
Key features: No power required, no protocol processing capability, and a lifespan exceeding 25 years. Huawei laboratory data shows that the insertion loss of high-quality splitters can be controlled below 17dB (1:64 splitting).
Passive Operations in PON Architecture

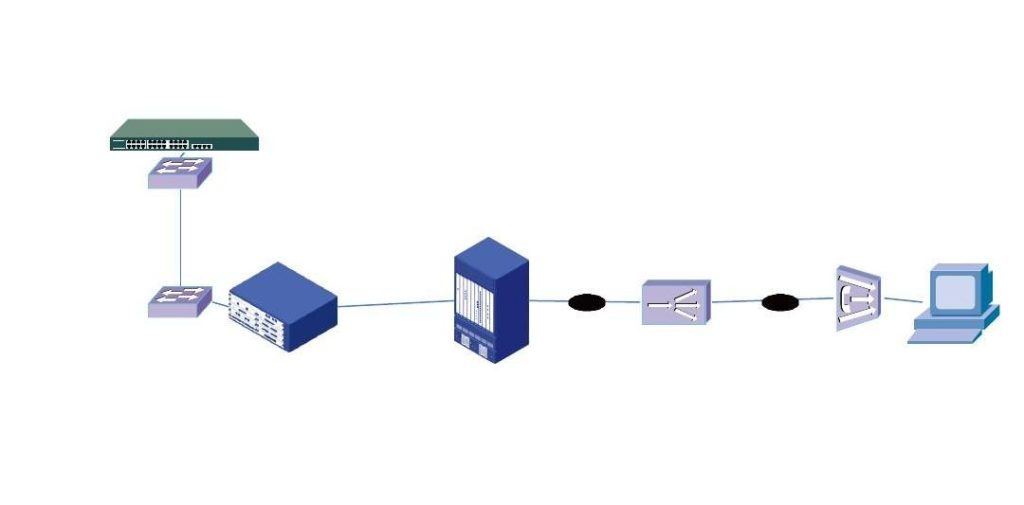

The data flow of a typical GPON network reveals the passive core:
OLT (central office) → trunk fiber → passive optical splitter → branch fiber → ONT (online terminal)
Failure Rate Comparison: The MTBF (mean time between failures) of passive optical splitter nodes reaches 500,000 hours, eight times that of active switches.
Energy Efficiency Advantage: At a scale of 100,000 users, the PON system saves 3.8 million kWh of electricity annually (equivalent to a reduction of 3,000 tons of CO₂).
PON vs. Ethernet
Essential architectural differences
| Characteristics | PON Network | Traditional Ethernet |
| Topological structure | Point-to-multipoint (tree-like) | Point-to-point (star-shaped |
| Core component | OLT + Passive spectrometer | Switch/Router |
| Line cost | Single-fiber service for 32 to 64 users | Each user has an independent optical fiber/copper cable |
| Transmission distance | 20km (no relay required | 100m (Copper cable limit) |
Key Concept Clarification
The Symbiotic Relationship between PON and ONT: As the user-side optical-to-electrical conversion terminal, the ONT’s optical module must be compatible with PON’s burst mode reception technology, which is fundamentally different from Ethernet’s continuous transmission.
GPON’s Evolutionary Positioning: As an ITU-T G.984 standard, GPON is the second-generation commercial implementation of PON. Its 2.5G/1.25G speeds have been surpassed by XGS-PON, but it shares a passive optical splitter architecture.
The Illusion of Dedicated Fiber: The so-called “exclusive fiber” still requires optical-to-electrical conversion at the access network end, while PON achieves sharing at the physical layer through optical splitters. The OLT port still provides logical isolation (GEM port).
Technical Barriers Created by Passive Components
Countering Over-Coax (DOCSIS)
DOCSIS relies on active amplifiers for extended distance, leading to noise accumulation. However, PON’s passive optical splitters do not introduce electronic noise. In a 128-household residential deployment, PON’s bit error rate (BER) is three orders of magnitude lower than DOCSIS.
Costs Overwhelm Point-to-Point Fiber
Fiber Resource Consumption: To serve 1,000 users, PON requires only 16 trunk fibers, while point-to-point solutions require 1,000.
Operation and Maintenance Costs: Passive optical splitters are maintenance-free, reducing OPEX by 40% compared to active equipment (OVUM Research Report).
The Truth About PON Ports in Wi-Fi Routers
So-called “PON routers” are devices with built-in ONT functionality. They connect directly to optical fiber via SC/APC interfaces and are essentially passive network terminal adapters.
Breaking the Misconception of Speed
PON ≠ Low Speed: The 50G-PON standard has been released (IEEE 802.3cp), reaching 50Gbps per wavelength.
Ethernet vs. Wi-Fi: Category 6 cable’s 10Gbps speed far exceeds Wi-Fi 7’s theoretical 5.8Gbps, but hybrid deployments are necessary for mobile scenarios.
Active Optical Cable (AOC) is gaining popularity for short-haul data center interconnects, but long-haul, wide-coverage applications remain the domain of passive PON.
Alternative solutions for the post-copper cable era
Conclusion: The Strategic Dawn of Passive Optical Components
As global operators face CAPEX tightening, the value of passive optical networks is becoming increasingly prominent:
- Cost-sensitive scenarios (residential areas/campuses): PON achieves a 7x cost advantage through optical splitters.
- Performance-sensitive scenarios (finance/industrial): A hybrid architecture combining PON backhaul and Ethernet access is adopted.
- Future Evolution: The SDN-controlled passive optical layer collaborates with the active IP layer to build a resilient optical network.
In tests conducted by the OpenXGS-PON Alliance, 25G PON based on passive optical splitting has achieved 20km transmission. This demonstrates the ultimate principle of optical communications: the most efficient signal transmission often stems from the simplest physical structure.
