Introduction

In modern optical communication systems, optical receivers play a vital role in converting optical signals into electrical data. The global passive optical network (PON) equipment market is expected to reach $27.5 billion by 2027 (at a CAGR of 8.3%), driven primarily by large-scale FTTH deployments. Among the many types of receivers, passive optical receivers stand out due to their simplicity, reliability, and cost-effectiveness in fiber optic networks.

This article will explore the role of passive optical receivers in optical communications, their advantages, and why they are the preferred solution in many fiber optic network applications.

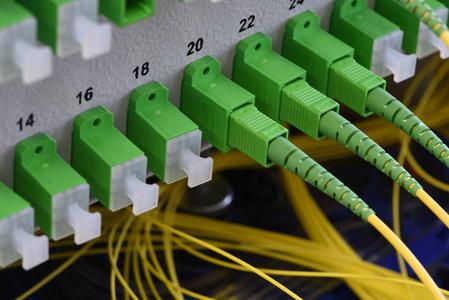

What is a passive optical receiver?

A passive optical receiver is a device that detects optical signals and does not require an external power source for signal amplification. Unlike active receivers that use active components such as amplifiers, passive receivers rely on the inherent sensitivity of photodetectors (such as photodiodes) to convert incident light into electrical signals.

These receivers are often used in Passive Optical Networks (PONs), such as Gigabit Passive Optical Networks (GPON) and Ethernet Passive Optical Networks (EPON), where active electronic components between the central office and the end user are minimized.

How Passive Optical Receivers Work

The optical signal is received through the optical interface, and the photoelectric effect of the photodiode is used to convert it into a weak photocurrent. The photocurrent is then amplified and converted into a voltage signal by a transimpedance amplifier. The noise and interference are then filtered out by the filter circuit. If necessary, the signal processing circuit is used to adjust the level and perform digital conversion, and finally output an electrical signal that can be processed by subsequent equipment. No power is required in this process.

Key components include:

Optical filter (for wavelength selection)

Photodiode (for light-to-current conversion)

Transimpedance amplifier (basic signal conditioning)

Advantages of Passive Optical Receivers in Fiber Optic Networks

1.Lower Power Consumption and Higher Energy Efficiency

Since passive optical receivers do not require active amplification, they consume much less power than active receivers. This makes them ideal for large-scale deployments, especially where energy efficiency is a primary consideration.

2.Reduced maintenance, higher reliability

With no active electronic components, passive receivers have fewer points of failure. This results in the following benefits:

Longer service life

Lower maintenance costs

Better performance in harsh environments

3.Low cost

Passive components are generally cheaper to manufacture and deploy. This makes passive optical receivers an affordable option for telecom operators when expanding their fiber optic networks.

4.Scalability for PON Architectures

Passive Optical Networks (PONs) rely heavily on passive splitters and receivers to distribute signals to multiple users. Passive receivers enable seamless scalability without requiring additional powered equipment at intermediate points.

5.Immunity to Electromagnetic Interference (EMI)

Since fiber-optic signals are immune to EMI, passive optical receivers maintain high signal integrity even in electrically noisy environments (e.g., industrial settings or near high-voltage equipment).

Passive vs. Active Optical Receivers: Key Differences

Features	Passive Optical Receivers	Active Optical Receivers
Power consumption	Very low (no magnification)	High (needs amplifier power)
Core components	PIN Photodiode	APD or TIA optical module
Cost	Low (simple structure)	High (complex circuit)
Signal amplification	No main amplification, depends on light intensity	Built-in electrical signal amplification
Transmission distance	Short (depends on light source power)	Long (can be relayed and amplified)
Applicable scenarios	PON terminals, short-distance access networks	Long-distance backbone networks, data centers

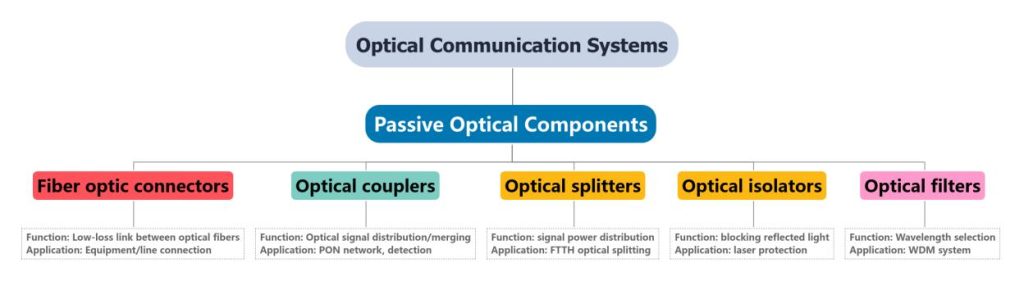

Applications in Optical Communication

Passive optical receivers are widely used in:

FTTH (Fiber-to-the-Home) networks – It is deeply integrated into the construction of home networks, building high-speed and stable Internet access channels for residential users, meeting users’ diverse network needs for high-definition video playback, fast download of large files, smooth online games, etc., and bringing high-speed network services into thousands of households.

Telecom backhaul networks – As a key hub for data transmission, it effectively connects various communication nodes and, with its efficient data processing and transmission capabilities, ensures that large amounts of data flow quickly and stably between nodes, providing solid support for the efficient operation of telecommunications networks and helping to achieve long-distance, large-capacity information interaction.

CATV (Cable TV) systems – It takes on the important task of high-bandwidth video signal transmission, ensuring that HD, UHD TV programs and various video content can be presented with high-quality picture quality and smooth playback effects, greatly improving the audience’s audio-visual experience and promoting the development of the cable TV industry.

Industrial & military communications – In industrial and military scenarios with extremely stringent requirements on equipment reliability, stability, and power consumption, passive optical receivers, with their significant advantages of low power consumption and high reliability, can still operate stably even in harsh environments and complex electromagnetic interference conditions, ensuring unimpeded operation of key communication links, and becoming a reliable guarantee for industrial automation production and transmission of military confidential information.

Conclusion

Passive optical receivers are a fundamental component of modern fiber-optic networks, offering energy efficiency, cost savings, reliability, and scalability. As optical communication continues to evolve, the demand for passive solutions will only grow, making them indispensable in next-generation networks. Their fundamental advantages ensure continued dominance in access and aggregation networks, even as active solutions maintain specific niches in long-haul transmission.

Whether you’re a network engineer, a telecom professional, or simply interested in fiber-optic technology, understanding the role of passive optical receivers helps appreciate how they silently power our connected world.
